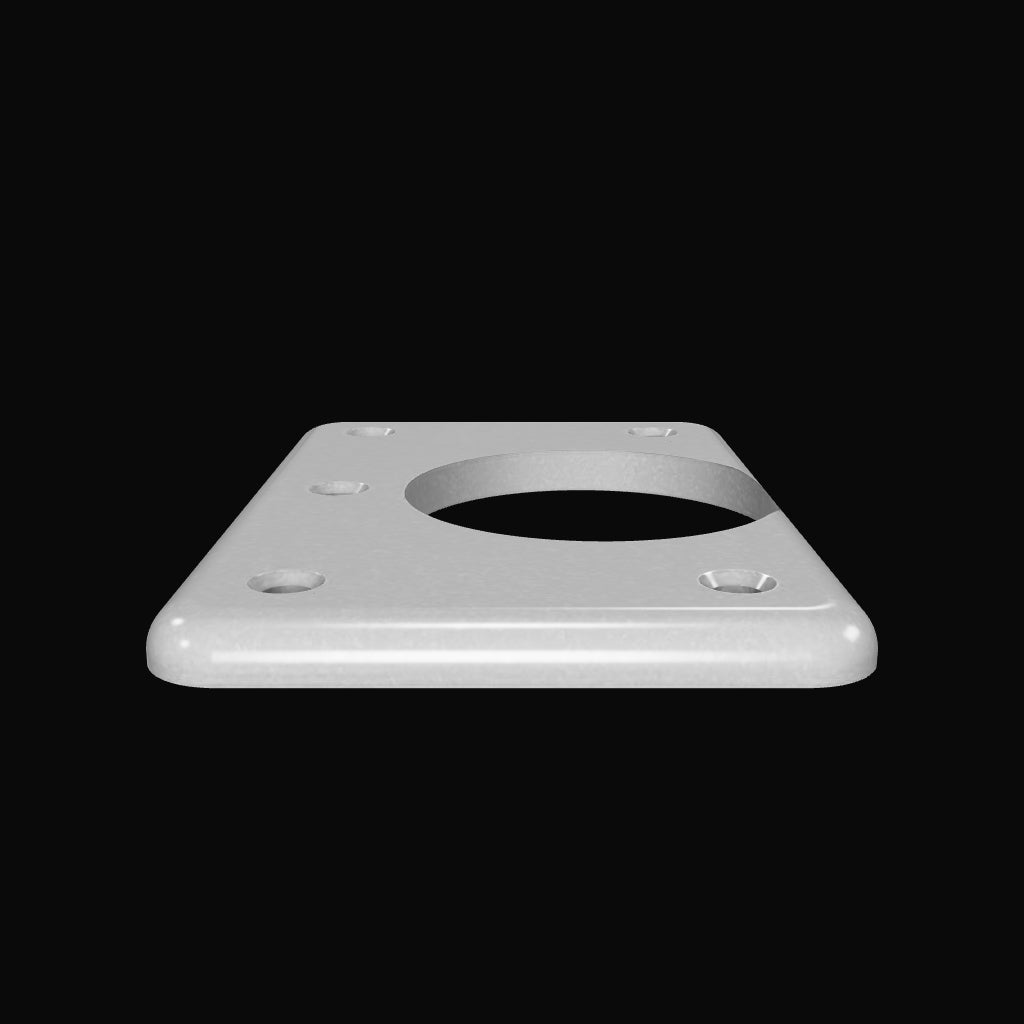

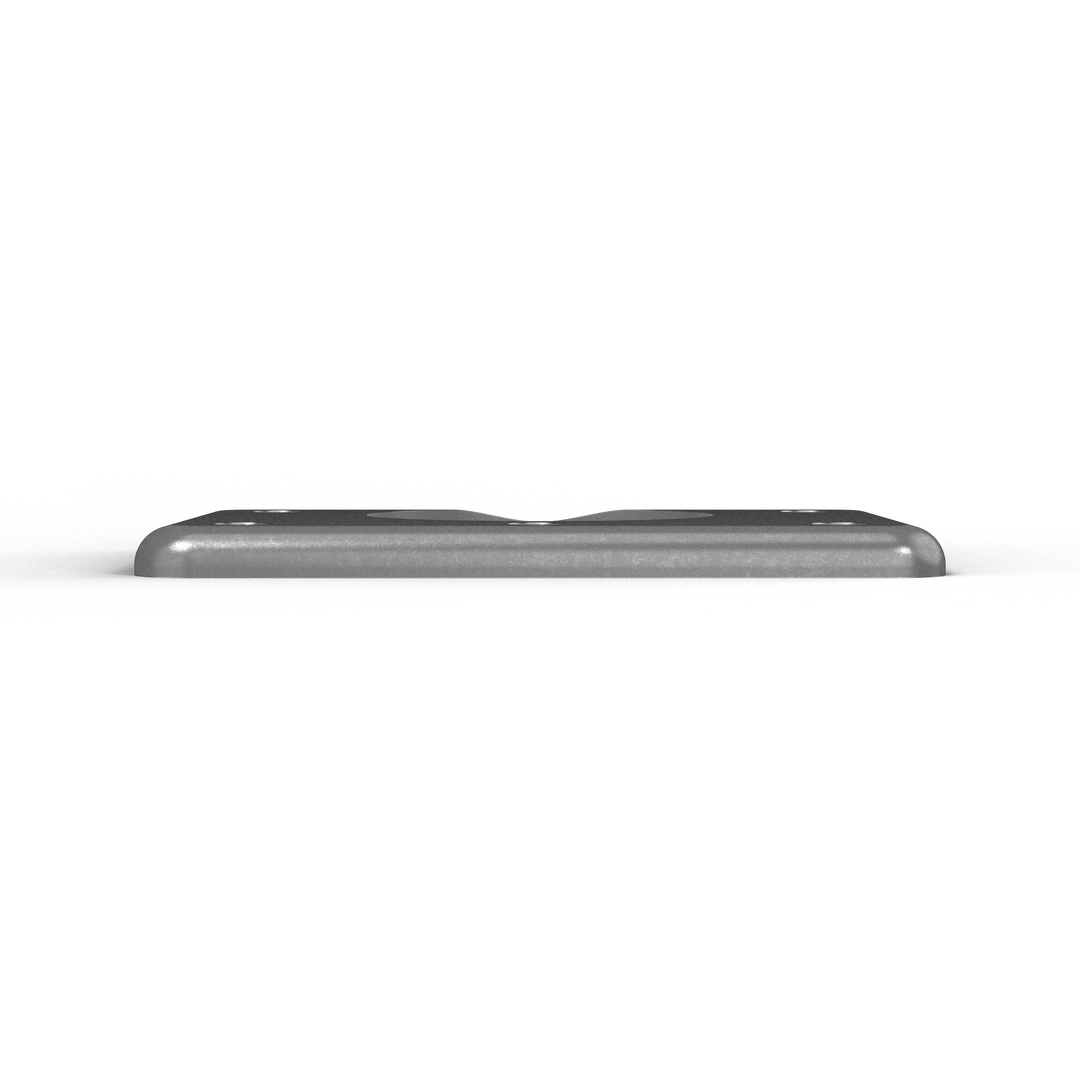

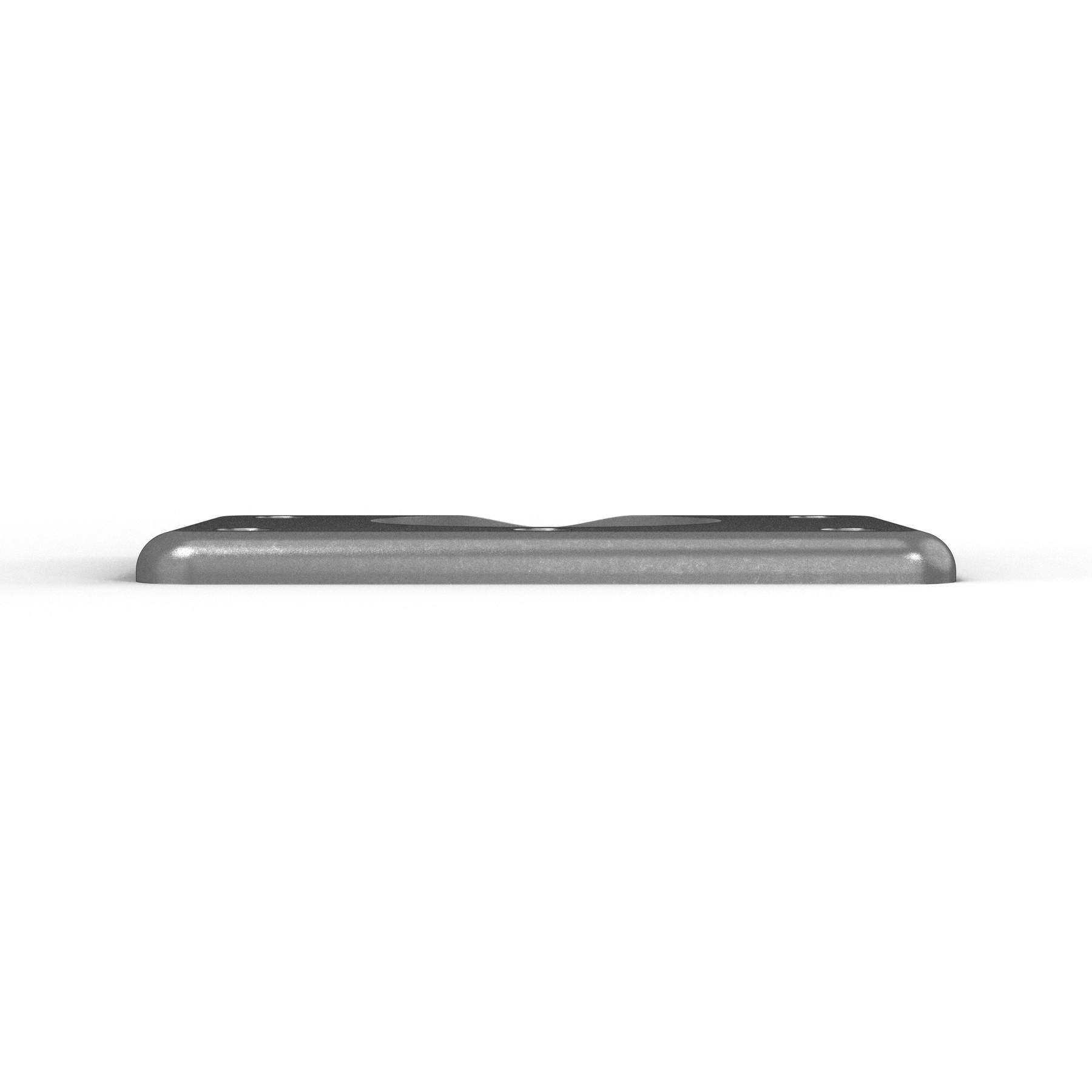

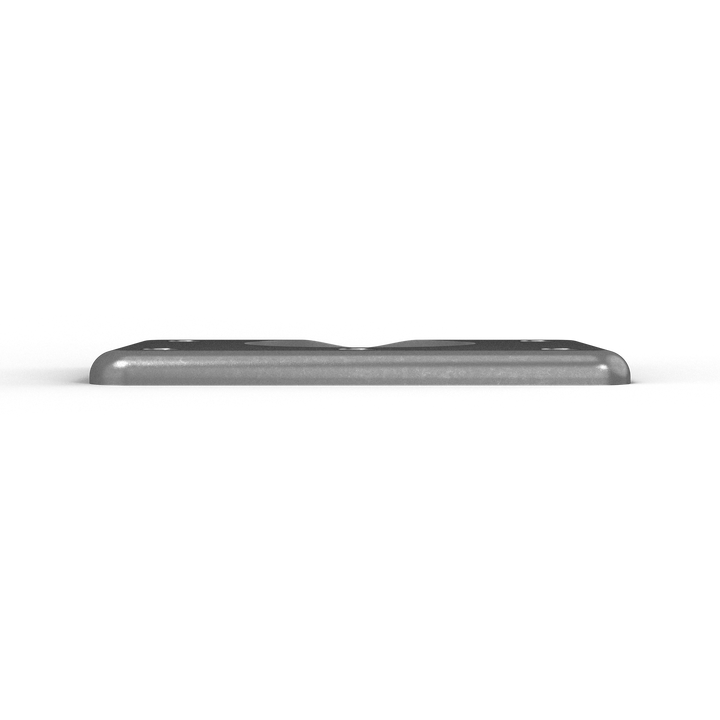

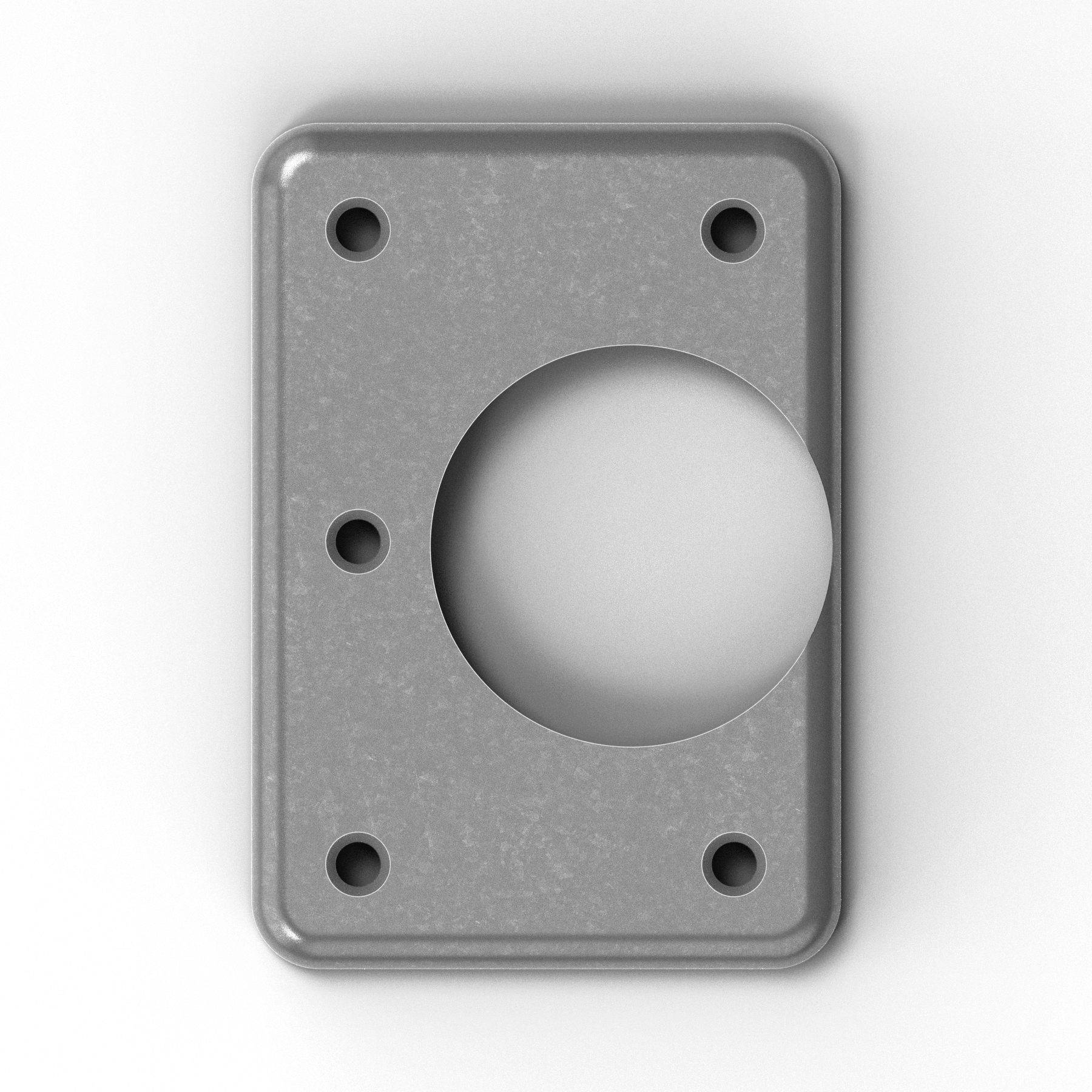

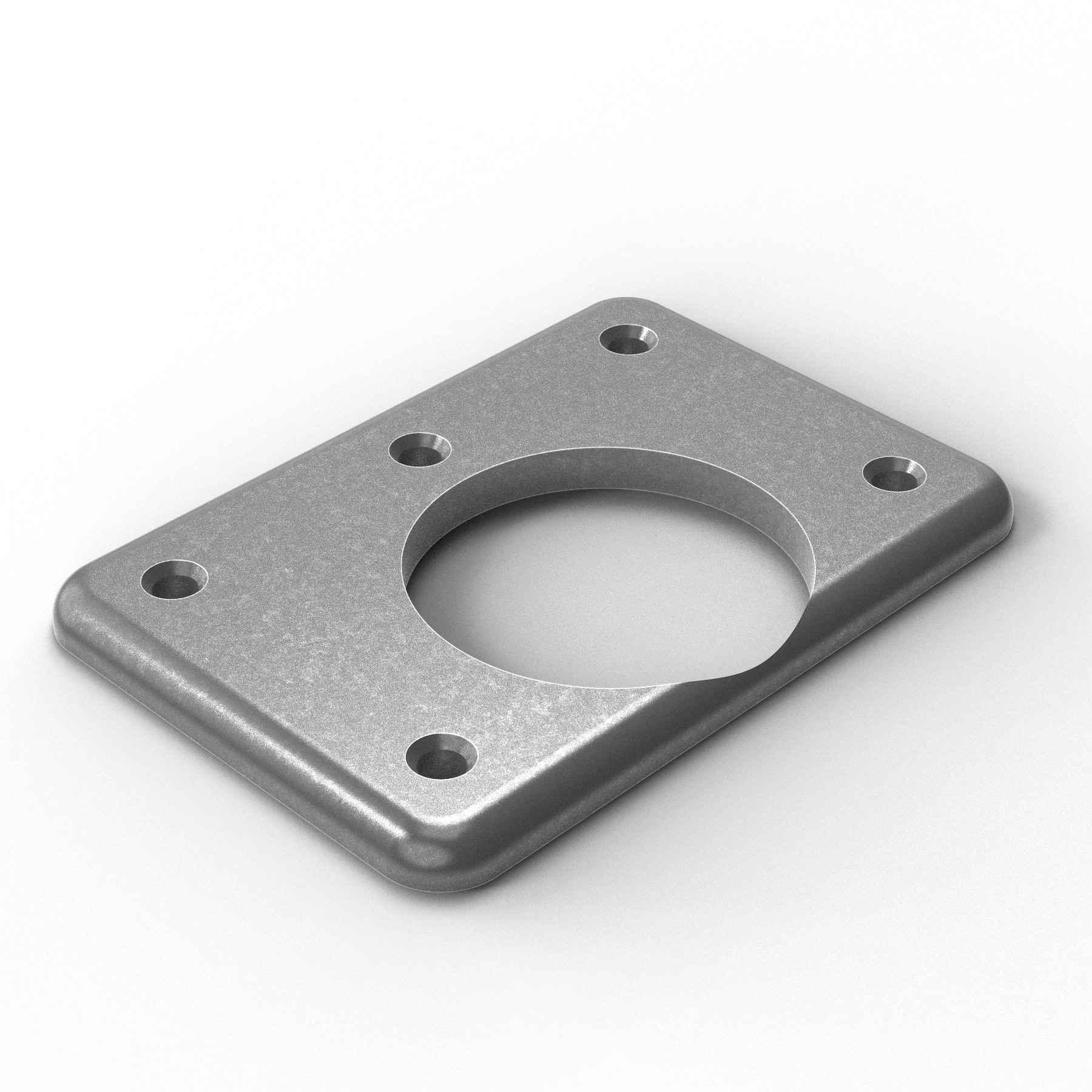

3/8" Thick 6.125" x 4.25" Rectangular Aluminum Countersunk Pad | 1.5" Center Passthrough | Right Hand | Marine Grade 6061-T6
0014-R
Right-Hand Countersunk Pad for 1.5" Pipe Pass-Throughs
3/8" thick marine-grade 6061-T6 aluminum countersunk pad with a 1.5" center passthrough designed for routing pipe or cable bundles through flat pedestal and hard top panels. Five countersunk holes sized for 1/4" countersunk head screws sit flush for a clean, professional finish on fiberglass or aluminum surfaces. Right-hand orientation — pair with SKU 0014-L for symmetrical installations.
| Material | Marine Grade 6061-T6 Aluminum |

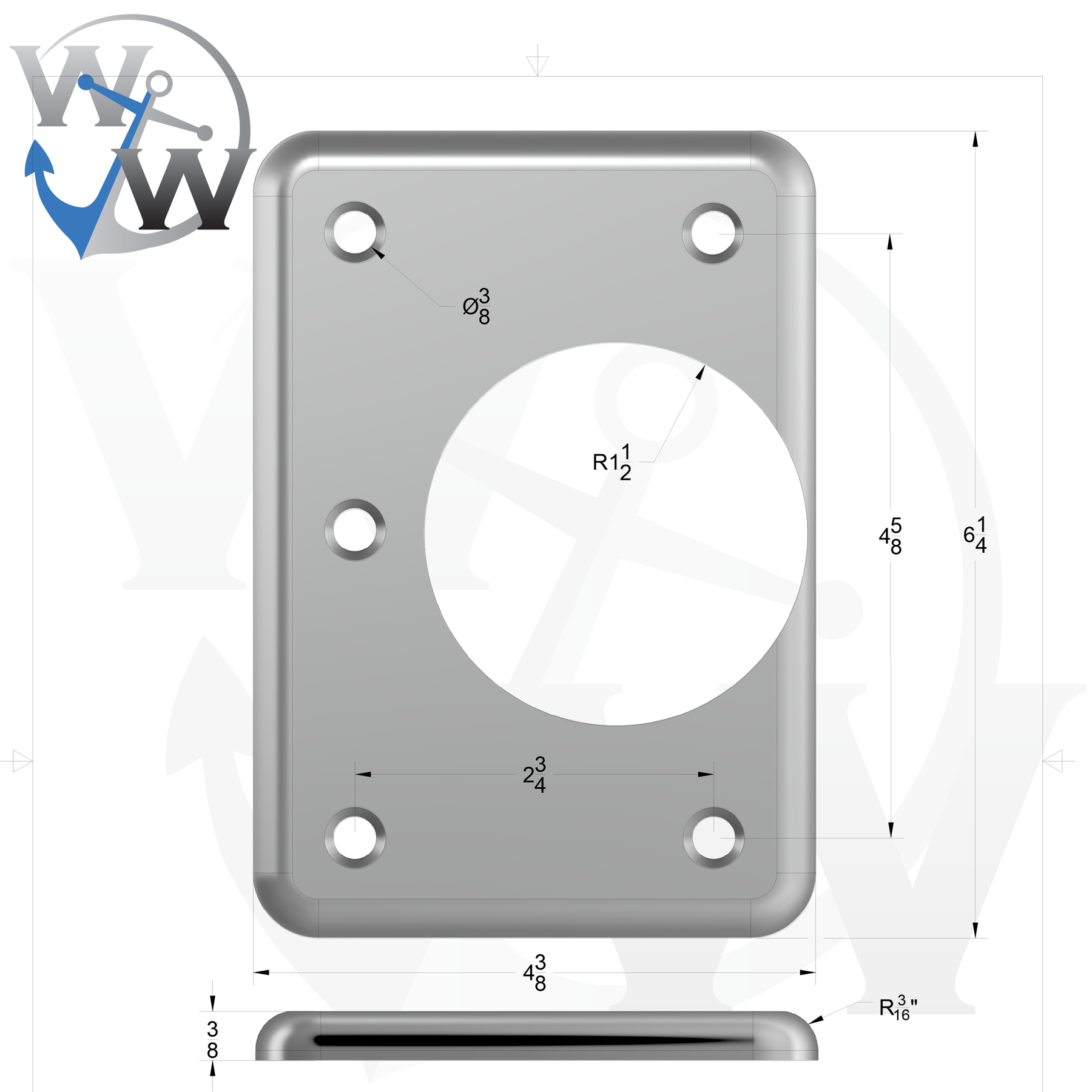

| Dimensions | 6.125" × 4.25" |
| Thickness | 3/8" (0.375") |
| Mounting Holes | 5 Countersunk (5/16") |
| Center Passthrough | 1.5" (both sides) |
| Shape | Rectangular |
| Orientation | Right Hand |
| Pairs With | SKU 0014-L (Left Hand) |
| Finish | Matte — paint/powder coat ready |
| Weight | 0.67 lb |
Common Applications
T-top pedestals, hard top panels, leaning post bases, radar arch mounts, and other fiberglass or aluminum structures requiring a flush-mount pass-through for 1.5" pipe or cable bundles.
Frequently Asked Questions
What size pipe fits through the 1.5" center passthrough?
The 1.5" center passthrough accommodates standard pipe and cable bundles up to 1.5" in diameter for routing through deck and pedestal surfaces.
What does "Right Hand" mean for this pad?
Right-hand orientation means this pad mirrors the left-hand version (SKU 0014-L). Use the right-hand pad where the mounting layout requires the countersunk hole pattern offset to the right side, and pair it with the left-hand version for symmetrical port/starboard installations.
What fasteners work with these countersunk holes?
The 5/16" countersunk holes are sized for 1/4" countersunk head screws. The screw head sits flush with the pad surface for a clean, professional finish.
Why use a pad with a center passthrough instead of a solid pad?
When routing pipe, hose, or cable bundles through a pedestal or hard top panel, the center passthrough eliminates the need to drill a separate hole. The pad provides both structural reinforcement and a clean pass-through in one component.
