3/8" Thick 6.125" x 4.25" Rectangular Aluminum Countersunk Pad | 4 Countersunk Holes | Marine Grade 6061-T6
Part Number: 0155

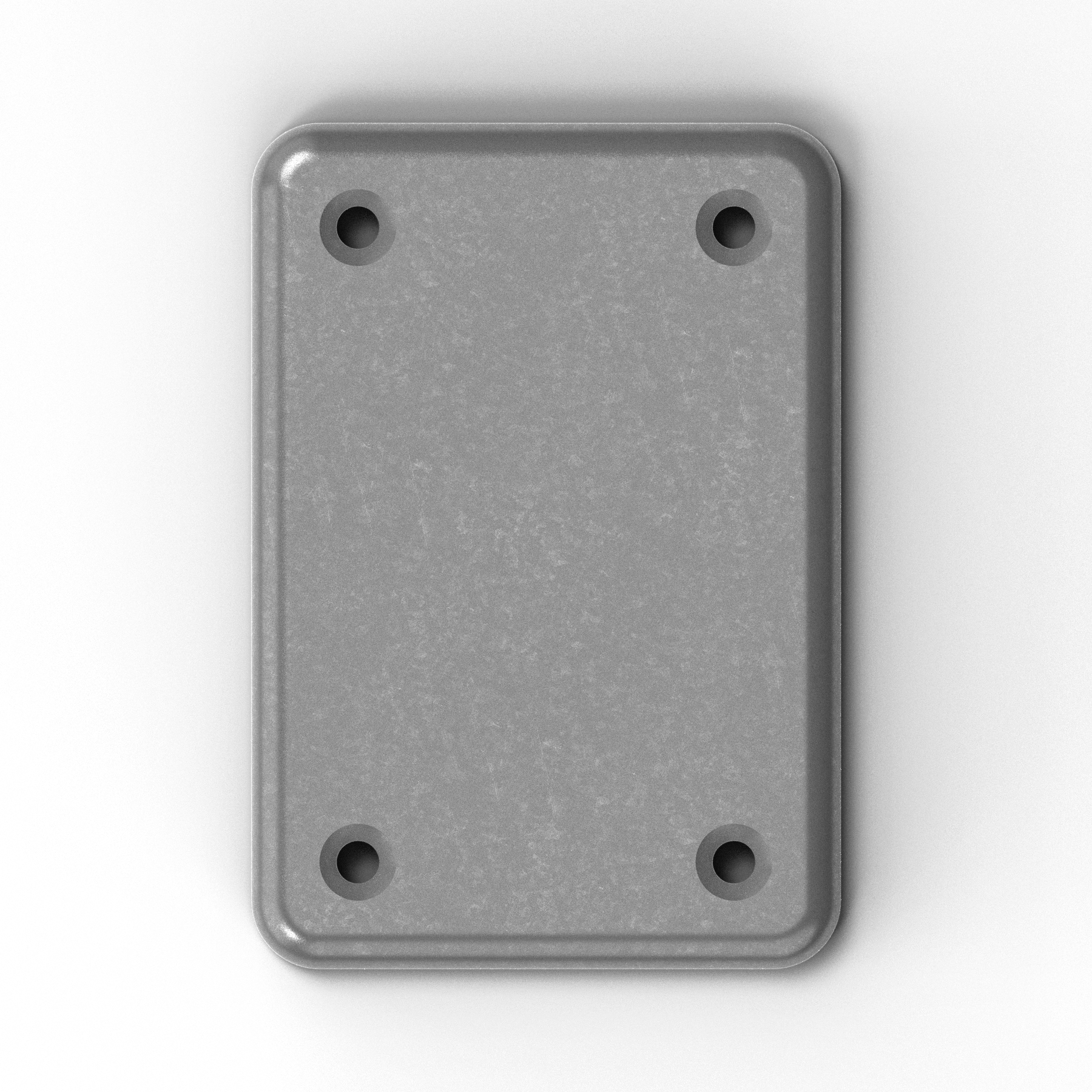

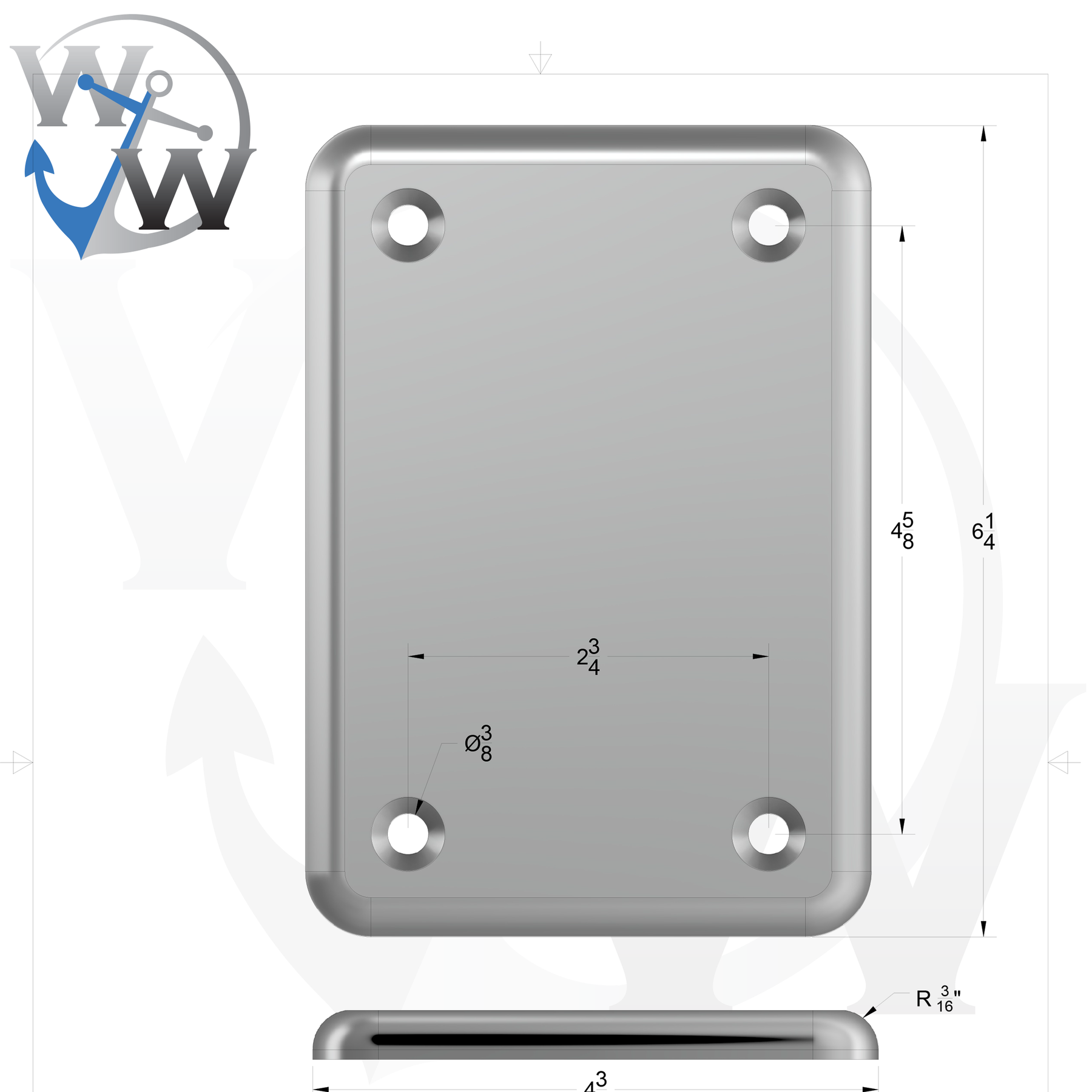

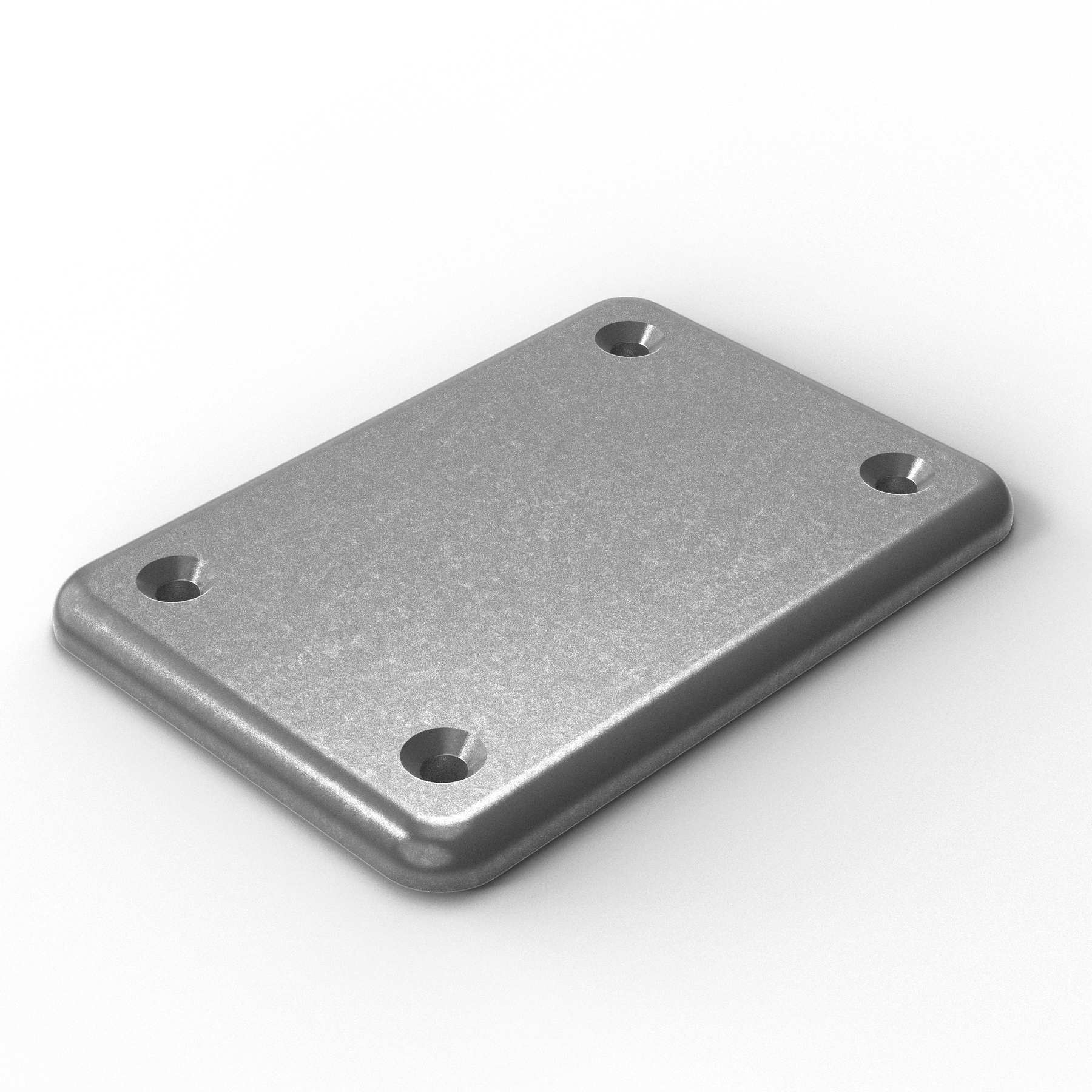

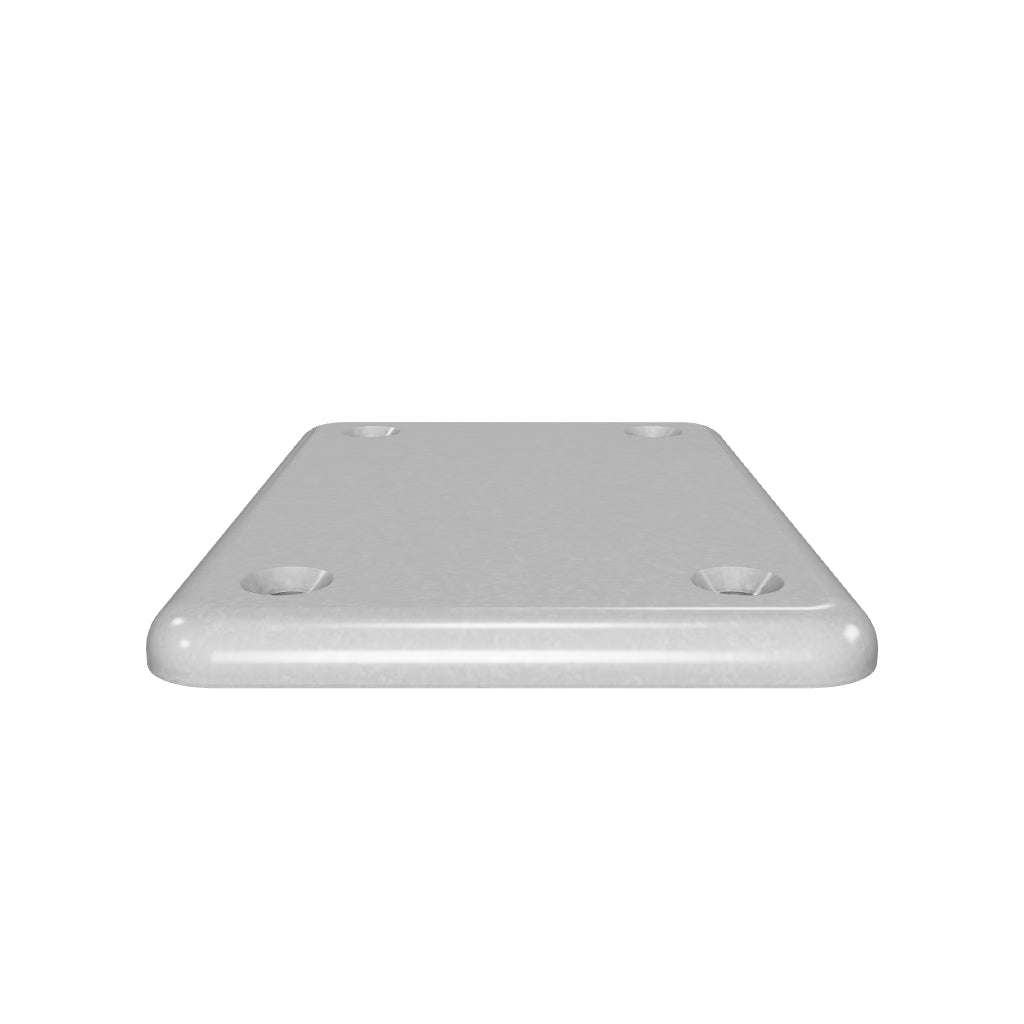

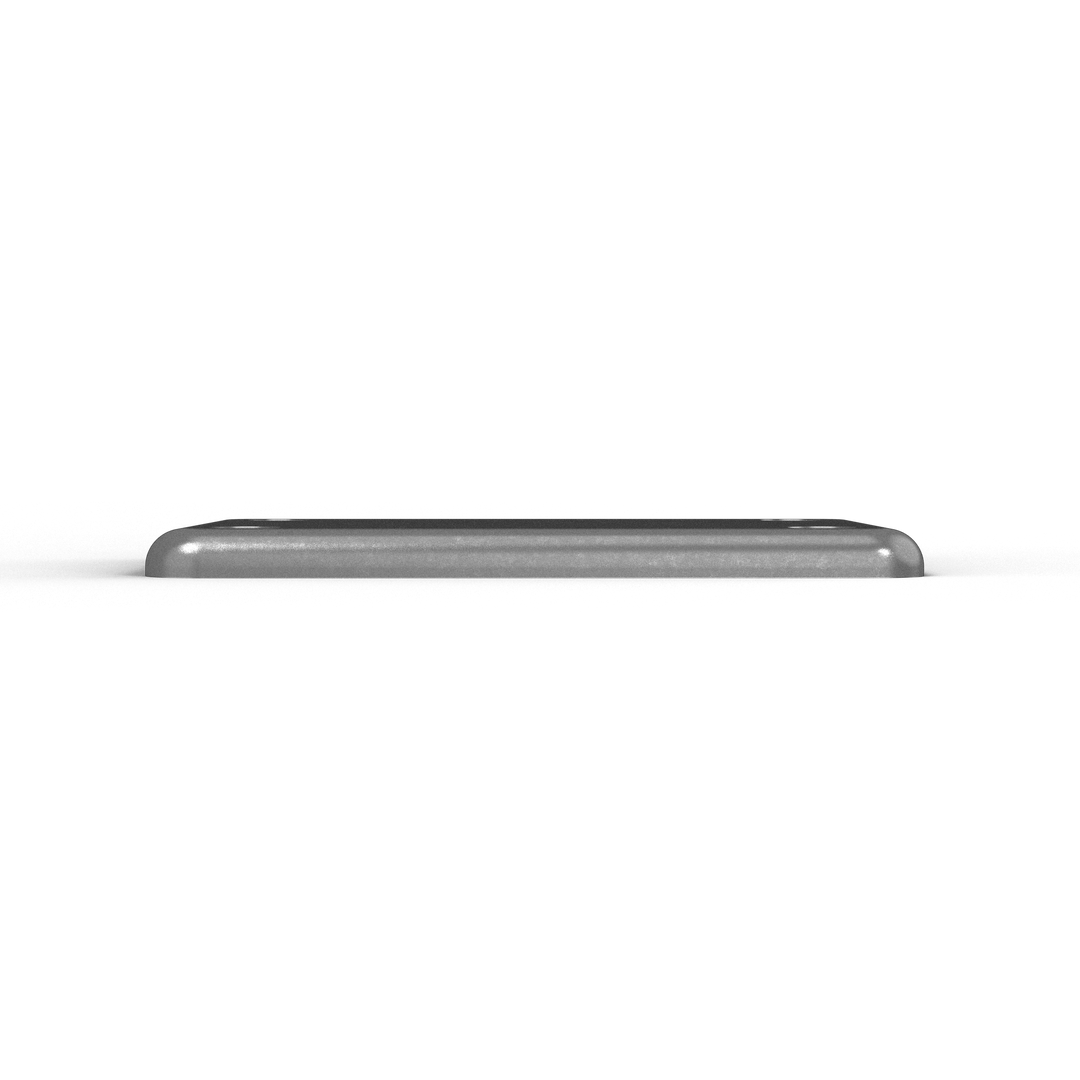

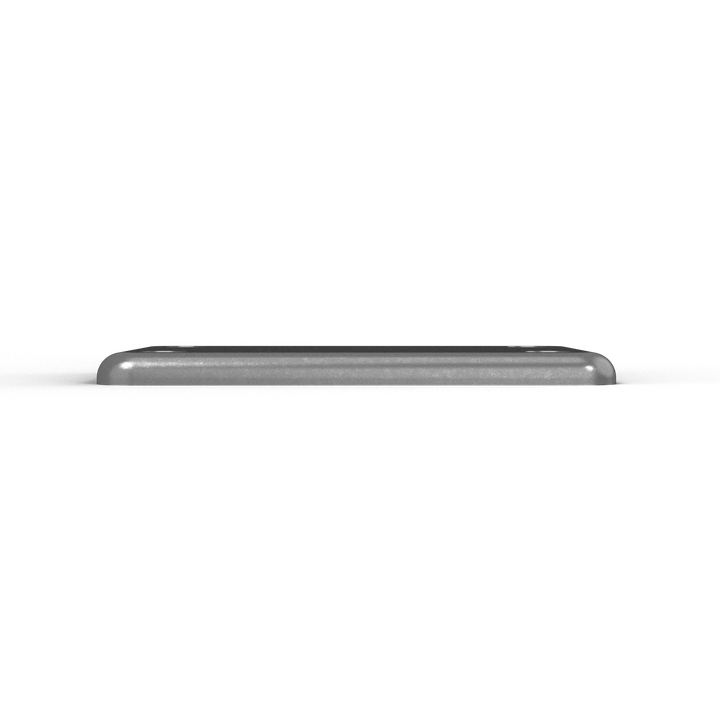

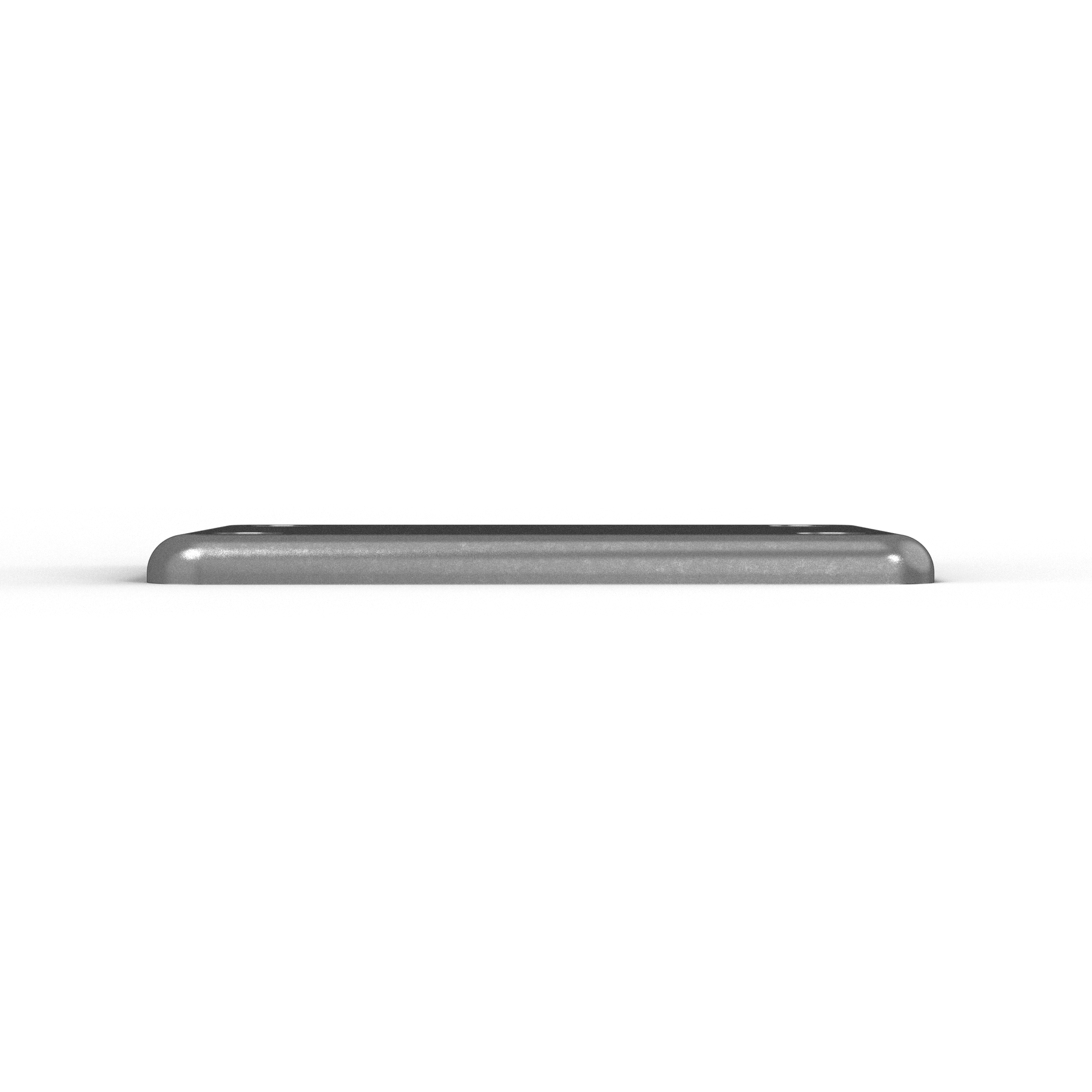

6.125" x 4.25" Rectangular Countersunk Pad — 25/64" Holes
Precision CNC-machined 6061-T6 aluminum rectangular countersunk pad with four mounting holes. Designed for flush-mount fastening on fiberglass pedestal surfaces in saltwater marine environments. Four countersunk holes allow countersunk head screws to sit flush with the pad surface. The 25/64" mounting holes are sized for 3/8" fasteners. Commonly used on top or through the side of a deck pedestal, as well as through the fiberglass skin of a hardtop or T-top.
| Material | Marine Grade 6061-T6 Aluminum |
| Length | 6.125" (156 mm) |
| Width | 4.25" (108 mm) |
| Thickness | 3/8" (0.375") |
| Mounting Holes | 4 countersunk (25/64" dia. for 3/8" fasteners) |
| Shape | Rectangular |
| Finish | Matte — tumbled, deburred, paint/powder coat ready |
| Weight | 0.92 lb |
Common Applications
T-tops, tuna towers, hard tops, radar arches, leaning posts, grab bars, bow rails, outrigger mounts, rod holders — commonly used on top or through the side of a deck pedestal, as well as through the fiberglass skin of a hardtop or T-top.
Frequently Asked Questions
What does "countersunk" mean for this pad?
Countersunk means the mounting holes are chamfered so countersunk head screws sit flush with the pad surface — no protruding screw heads that could snag lines or cause injury.
Can this pad be used on a fiberglass deck?
Yes — this pad is designed for fiberglass pedestal installations. The countersunk holes accommodate countersunk head screws, and the pad distributes fastener loads over a wider surface area to prevent deck damage.
What size fasteners do I need?
The four countersunk holes are 25/64" diameter, sized for 3/8" fasteners. Use 3/8"-16 stainless countersunk head screws for best results.
Why four holes in a rectangular pattern?
Four-hole rectangular patterns provide balanced fastener distribution across a wider surface — ideal for mounting hardware on flat pedestal and hard top panels.
