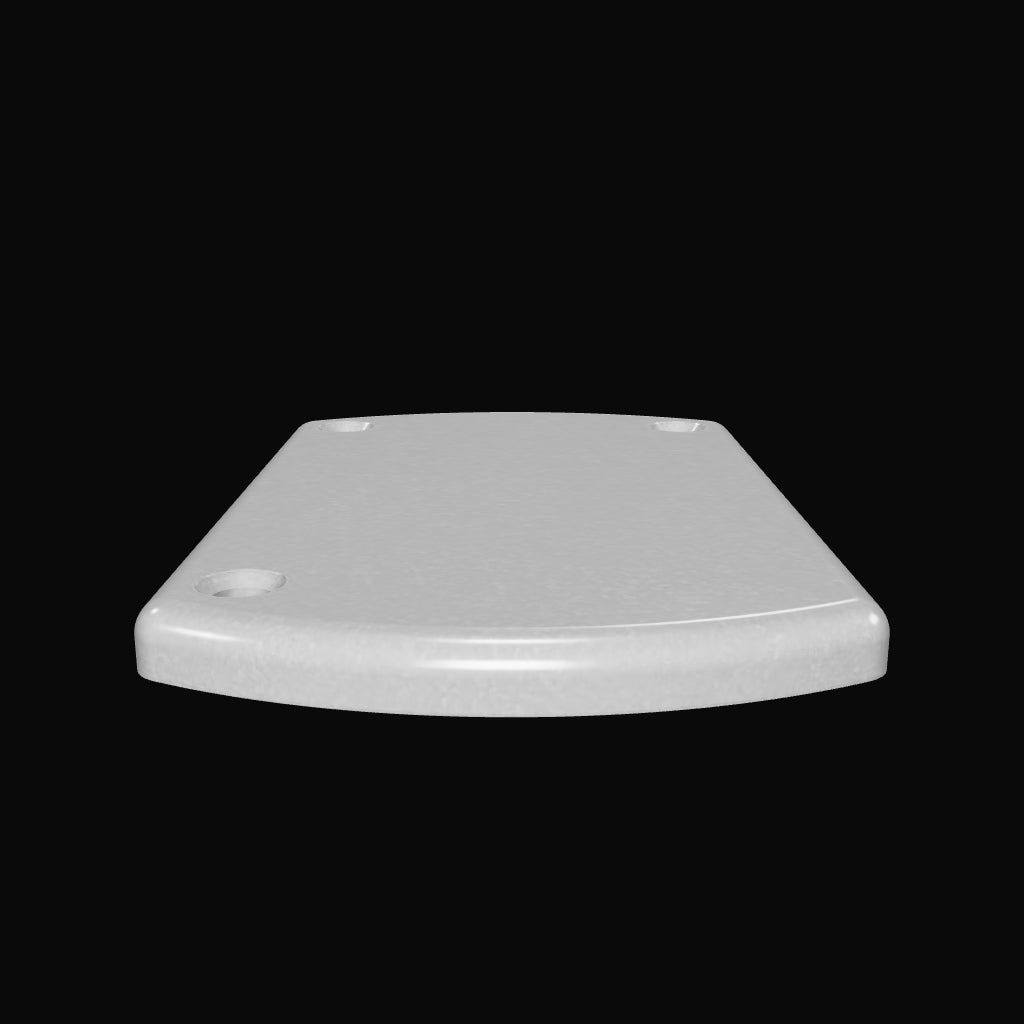

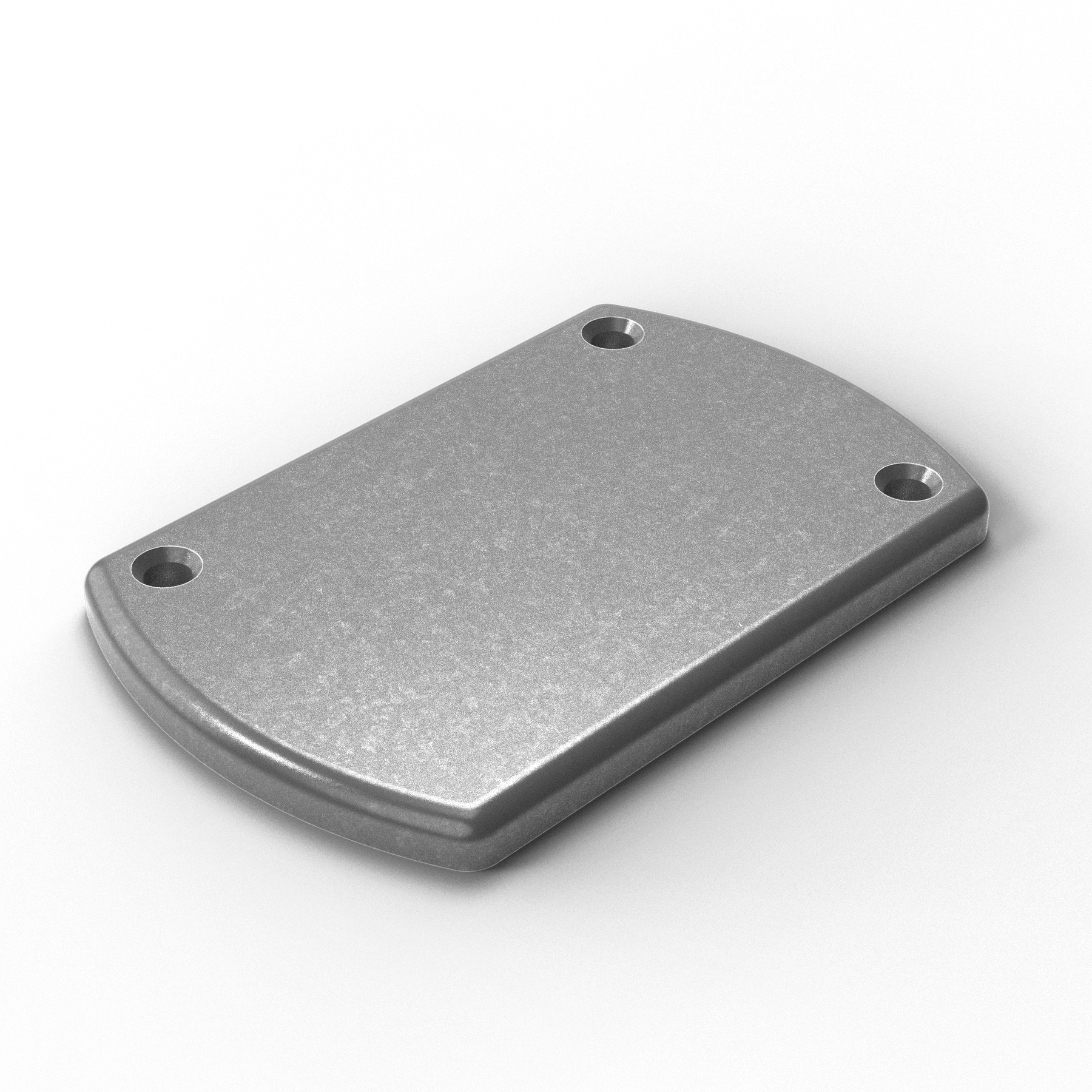

1076-R 3/8" Thick 3.75" x 6" Aluminum Countersunk Pad - ISO View

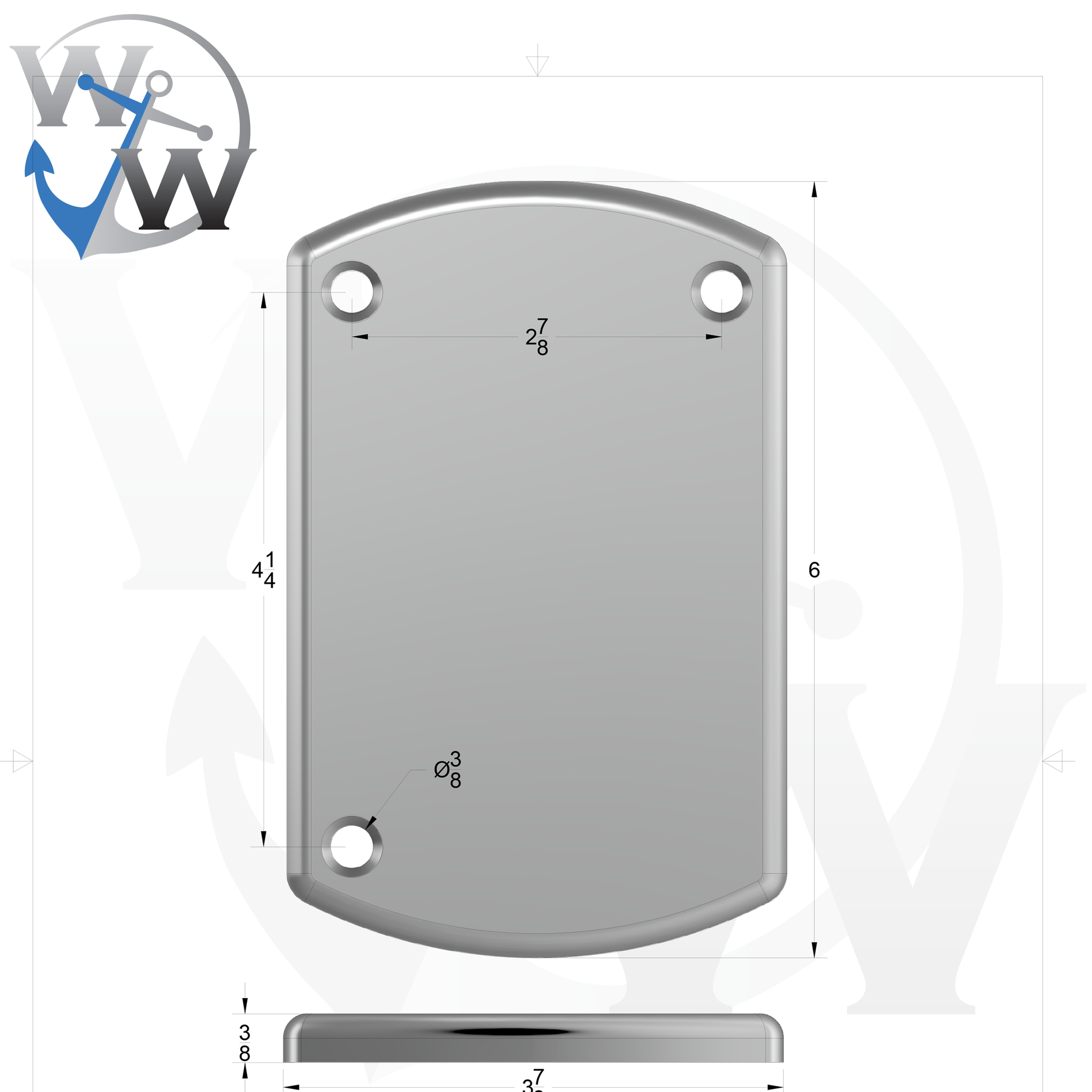

1076-R 3/8" Thick 3.75" x 6" Aluminum Countersunk Pad - Spec Sheet Drawing

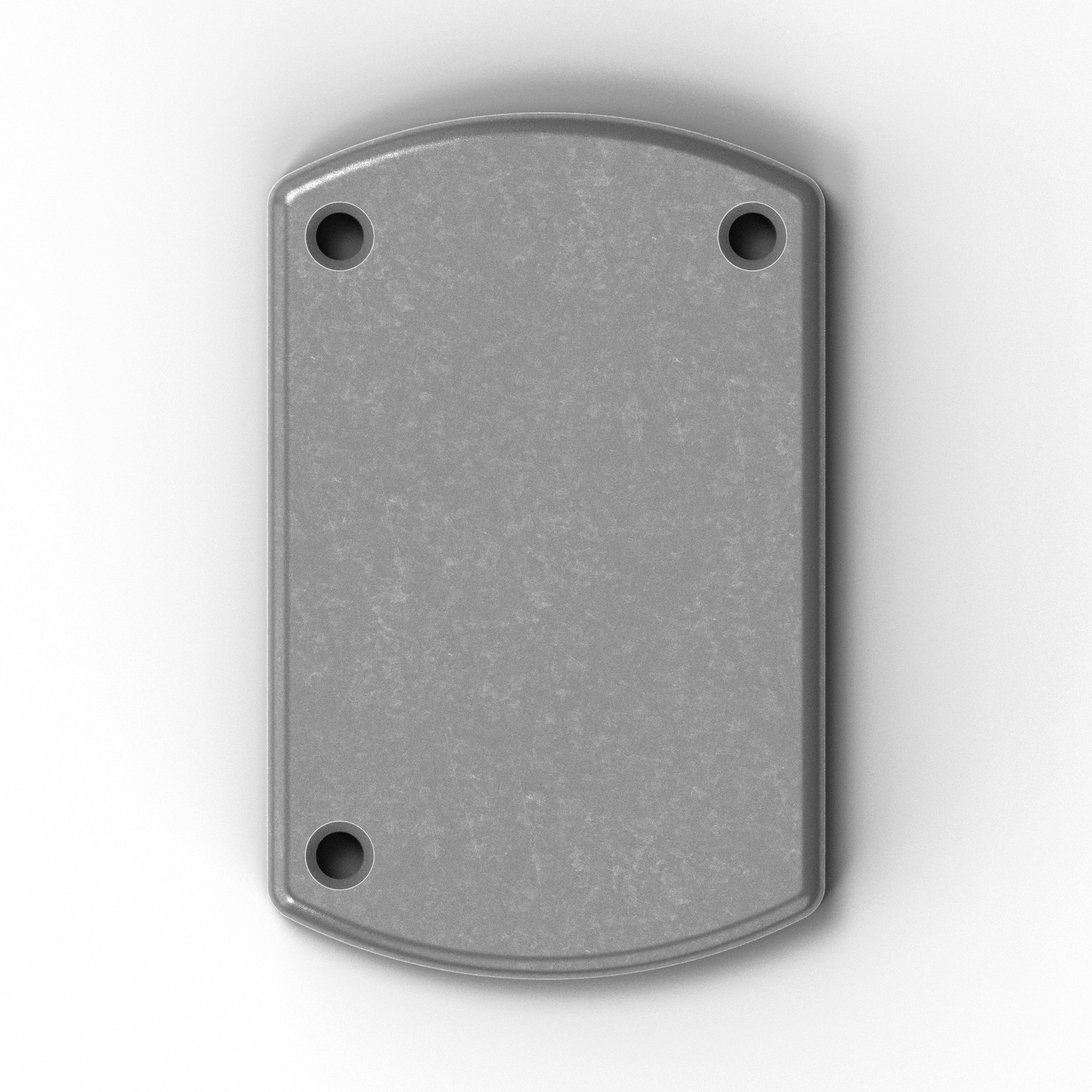

1076-R 3/8" Thick 3.75" x 6" Aluminum Countersunk Pad - Top View

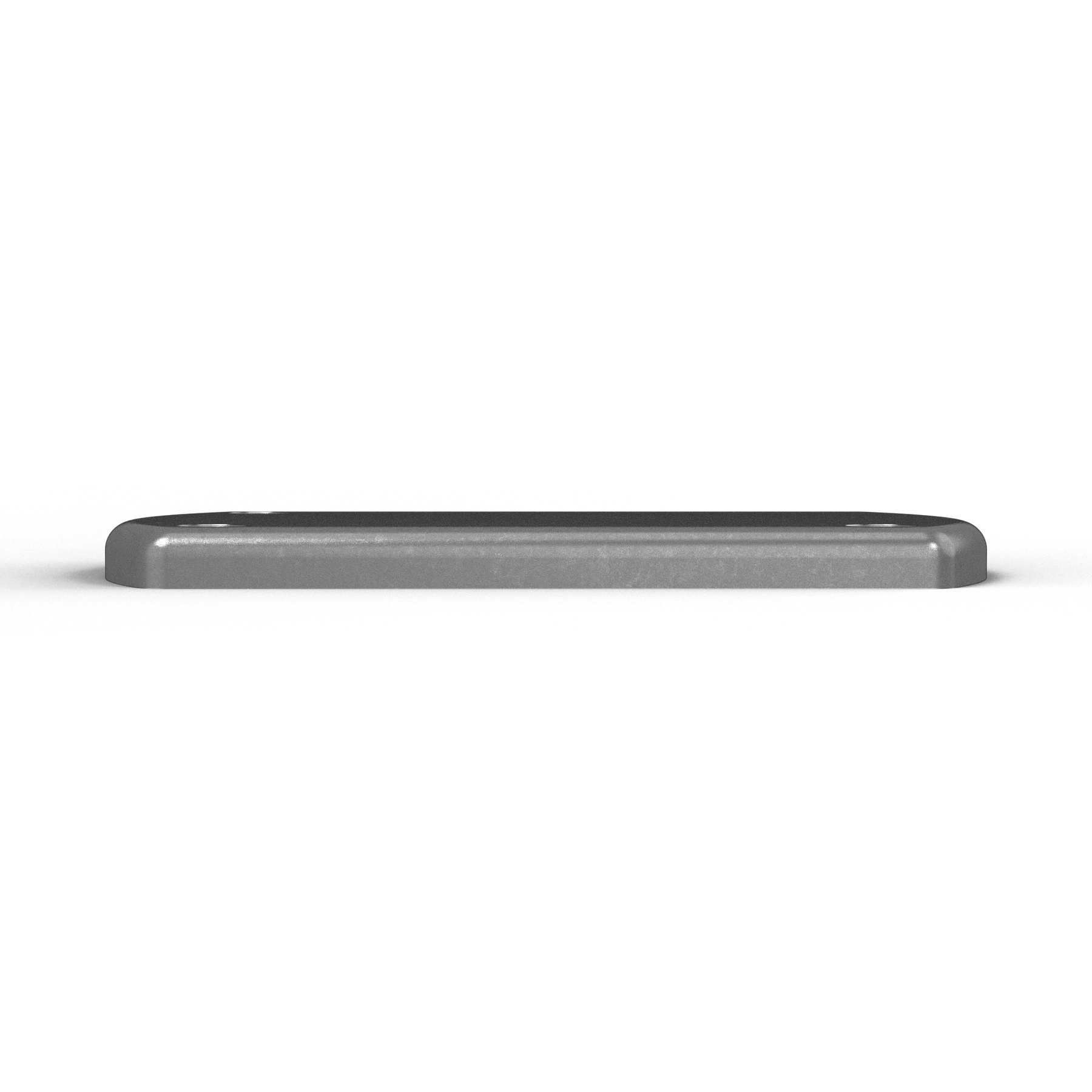

1076-R 3/8" Thick 3.75" x 6" Aluminum Countersunk Pad - Side Profile
1076-R 3/8" Thick 3.75" x 6" Aluminum Countersunk Pad - ISO View
1076-R 3/8" Thick 3.75" x 6" Aluminum Countersunk Pad - Spec Sheet Drawing
1076-R 3/8" Thick 3.75" x 6" Aluminum Countersunk Pad - Top View
1076-R 3/8" Thick 3.75" x 6" Aluminum Countersunk Pad - Side Profile
1076-R 3/8" Thick 3.75" x 6" Aluminum Countersunk Pad - Interactive 3D Model

3/8" Thick 3.75" x 6" Aluminum Countersunk Pad | Right Side | Marine Grade 6061-T6

Part Number: 1076-R

$ 18.00
/

Oblong Countersunk Pad for Flat Pedestal Mounts — Right Side

3/8" thick marine-grade 6061-T6 aluminum oblong countersunk pad with a 3.75" x 6" footprint. Countersunk holes allow flush fastener installation for a clean, low-profile appearance. Right Side orientation — pair with SKU 1076-L for symmetrical port/starboard installations.

Profile 3.75" x 6" Oblong
Thickness 3/8" (0.375")
Mounting Holes Countersunk 21/64" (for 5/16" fasteners)
Finish Matte — paint/powder coat ready
Weight 0.7608 lb
Pairs With SKU 1076-L (Left Side)

Common Applications

Flat pedestal mounting, hard top panel bases, T-top surface mounts, and structural deck installations where a flush oblong countersunk mounting surface is needed.

Frequently Asked Questions

What does a countersunk pad do?
A countersunk pad features conical holes that allow flat-head fasteners to sit flush with the pad surface, creating a smooth, low-profile appearance that prevents hardware protrusion.

What does "Right Side" mean?
Right Side orientation means this pad mirrors the left side version (SKU 1076-L). Pair both for symmetrical port/starboard installations on T-tops and towers.

What does oblong mean?
Oblong refers to the elongated shape with rounded ends, providing more surface area than a round pad while maintaining a compact footprint.
