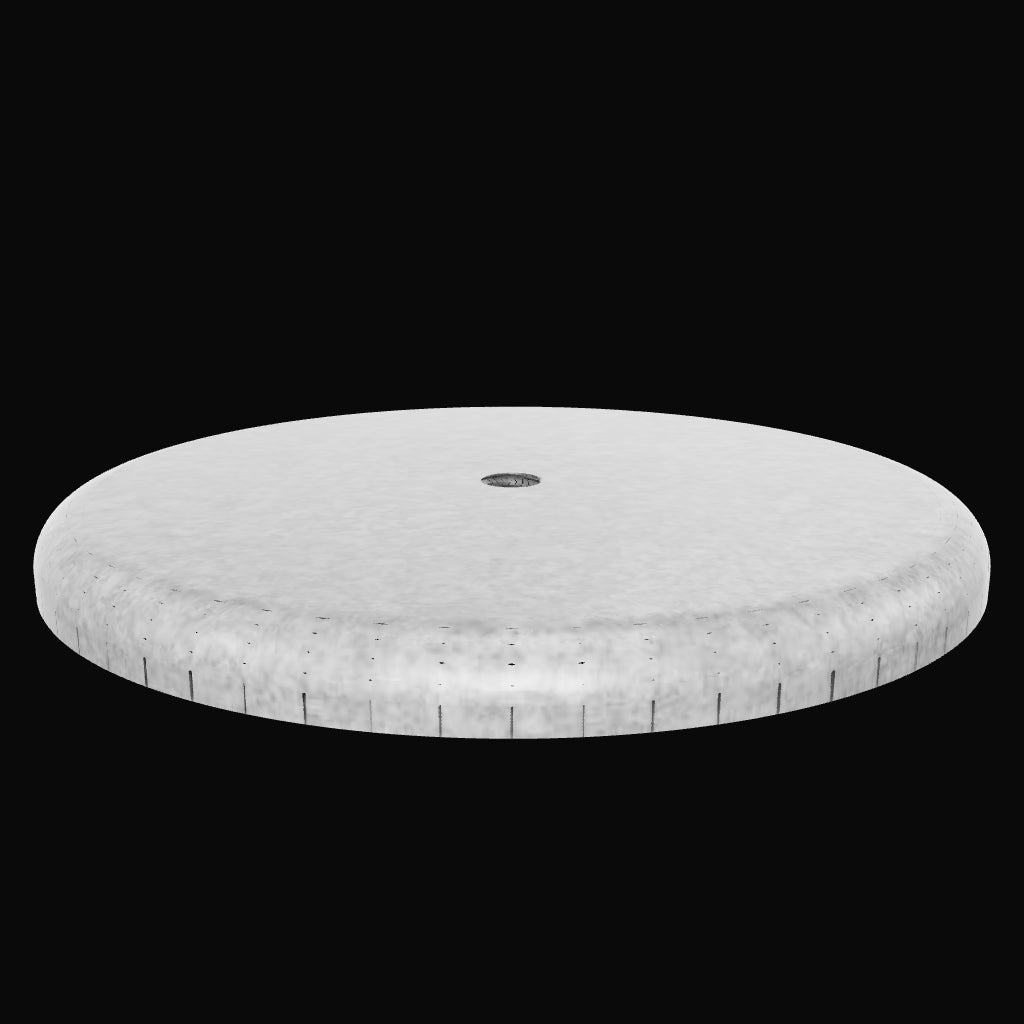

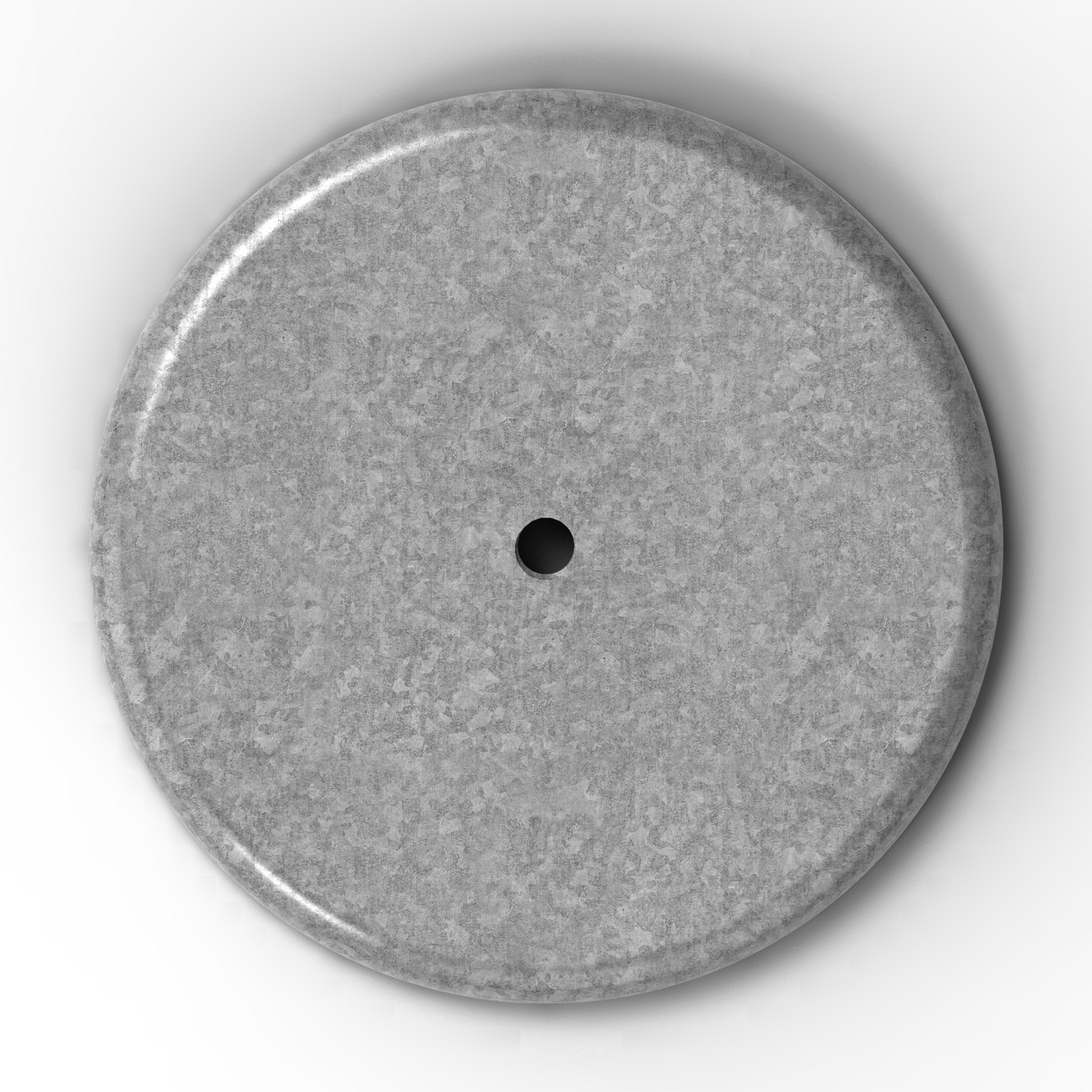

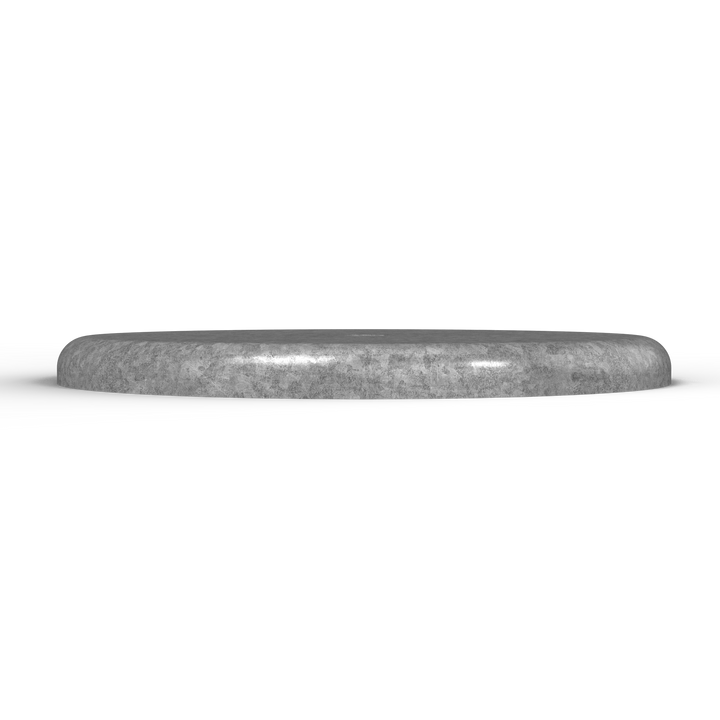

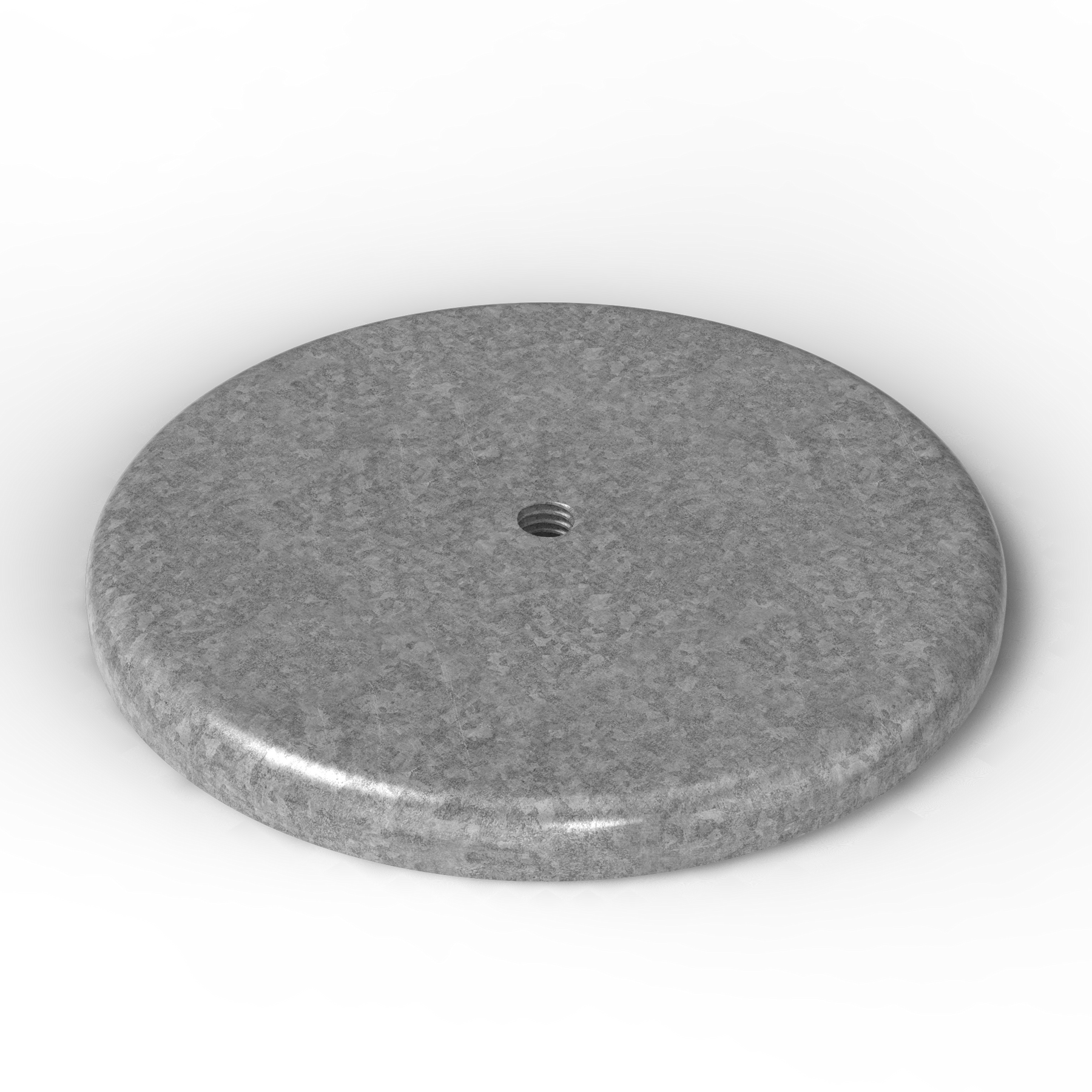

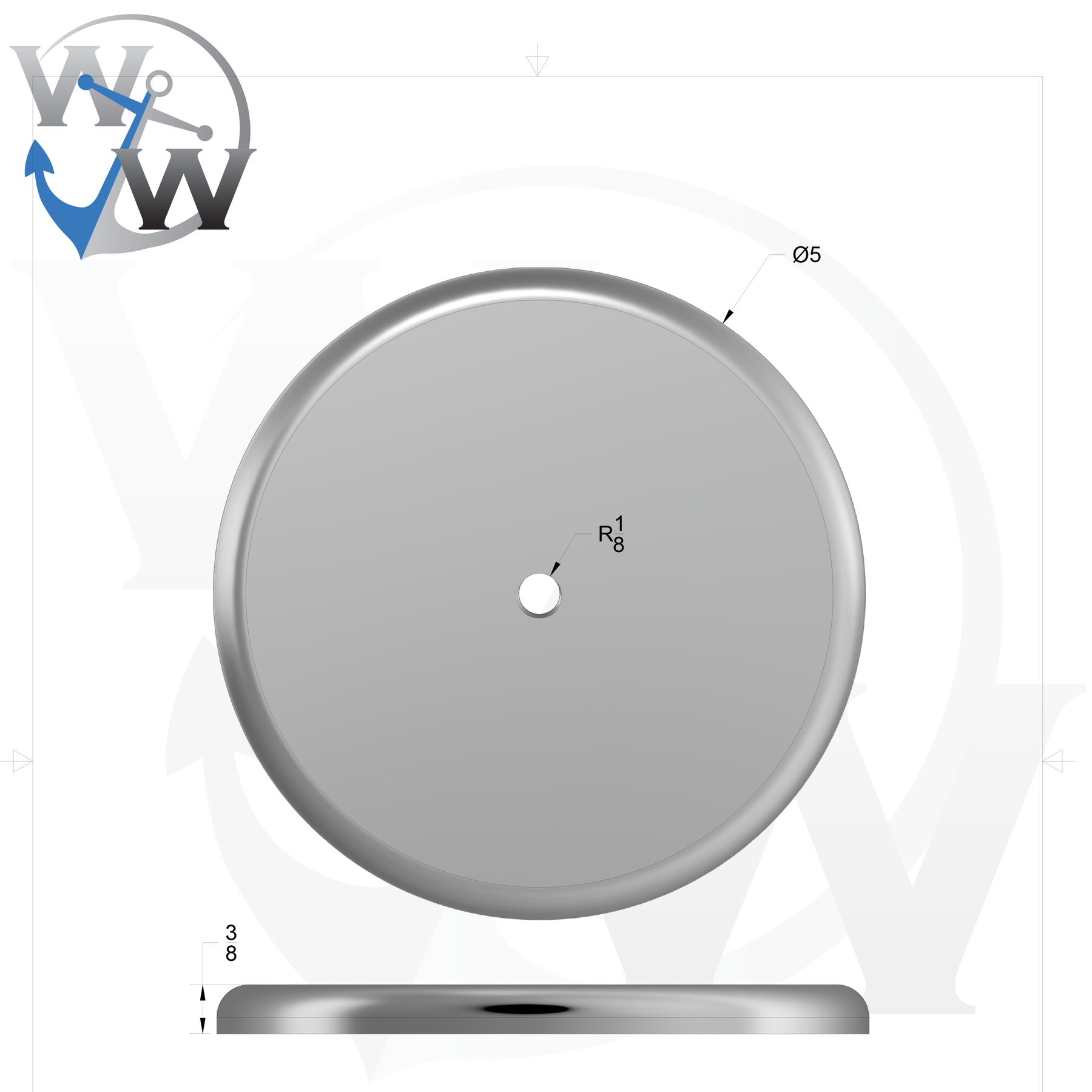

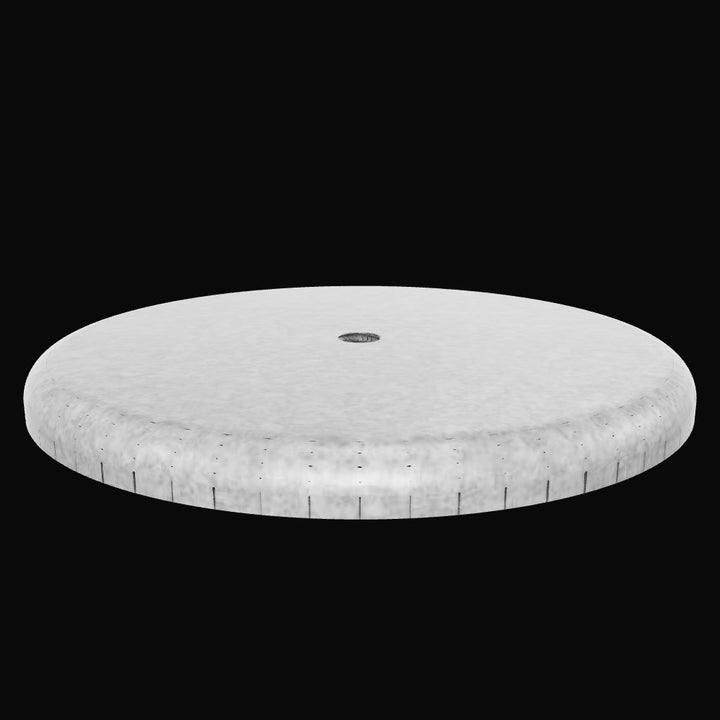

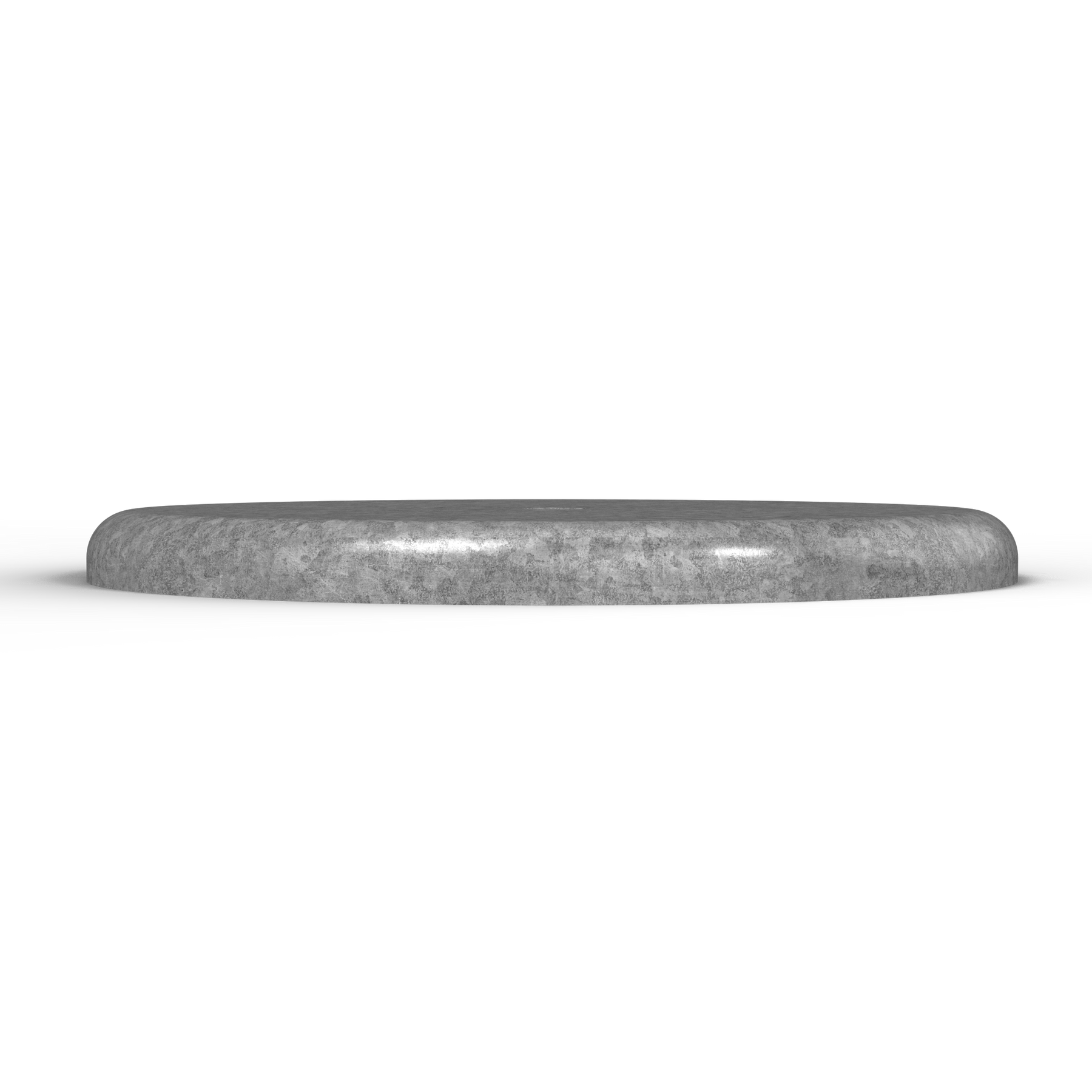

3/8" Thick 5.125" OD Round Aluminum Mounting Pad | Tapped 5/16"-18 UNC Center | Marine Grade 6061-T6
Part Number: 0004
Single-Hole Round Mounting Pad
Precision CNC-machined 6061-T6 aluminum round mounting pad with a tapped 5/16"-18 UNC center hole. The threaded hole accepts a bolt directly — no nut required — making this pad ideal for standalone mounting points on fiberglass deck surfaces. Commonly used on top or through the side of a deck pedestal, as well as through the fiberglass skin of a hardtop or T-top. Distributes fastener loads over a wider surface area to prevent damage to the fiberglass.
| Material | Marine Grade 6061-T6 Aluminum |
| Outside Diameter | 5.125" OD |
| Thickness | 3/8" (0.375") |
| Center Hole | Tapped 5/16"-18 UNC (accepts bolt directly) |
| Shape | Round |
| Finish | Matte — tumbled, deburred, paint/powder coat ready |
| Weight | 0.69 lb |
Common Applications
T-tops, tuna towers, hard tops, radar arches, leaning posts, grab bars — used as a mounting pad where a threaded receiver point is needed on top or through the side of a deck pedestal, or through the fiberglass skin of a hardtop or T-top.
Frequently Asked Questions
What is a mounting pad?
A mounting pad has a tapped (threaded) center hole that accepts a bolt directly — no nut required. It sits on the outside of the fiberglass surface and the bolt threads into the pad from behind, providing a clean, secure mounting point while distributing fastener loads to prevent damage to the fiberglass.
What does "tapped" mean?
Tapped means the hole has internal threads cut into it (5/16"-18 UNC in this case) so a bolt screws directly into the pad. No separate nut is needed — the pad itself is the threaded receiver.
What size bolt do I need?
The tapped center hole accepts a 5/16"-18 UNC bolt. Use 5/16"-18 stainless hardware for best results.
