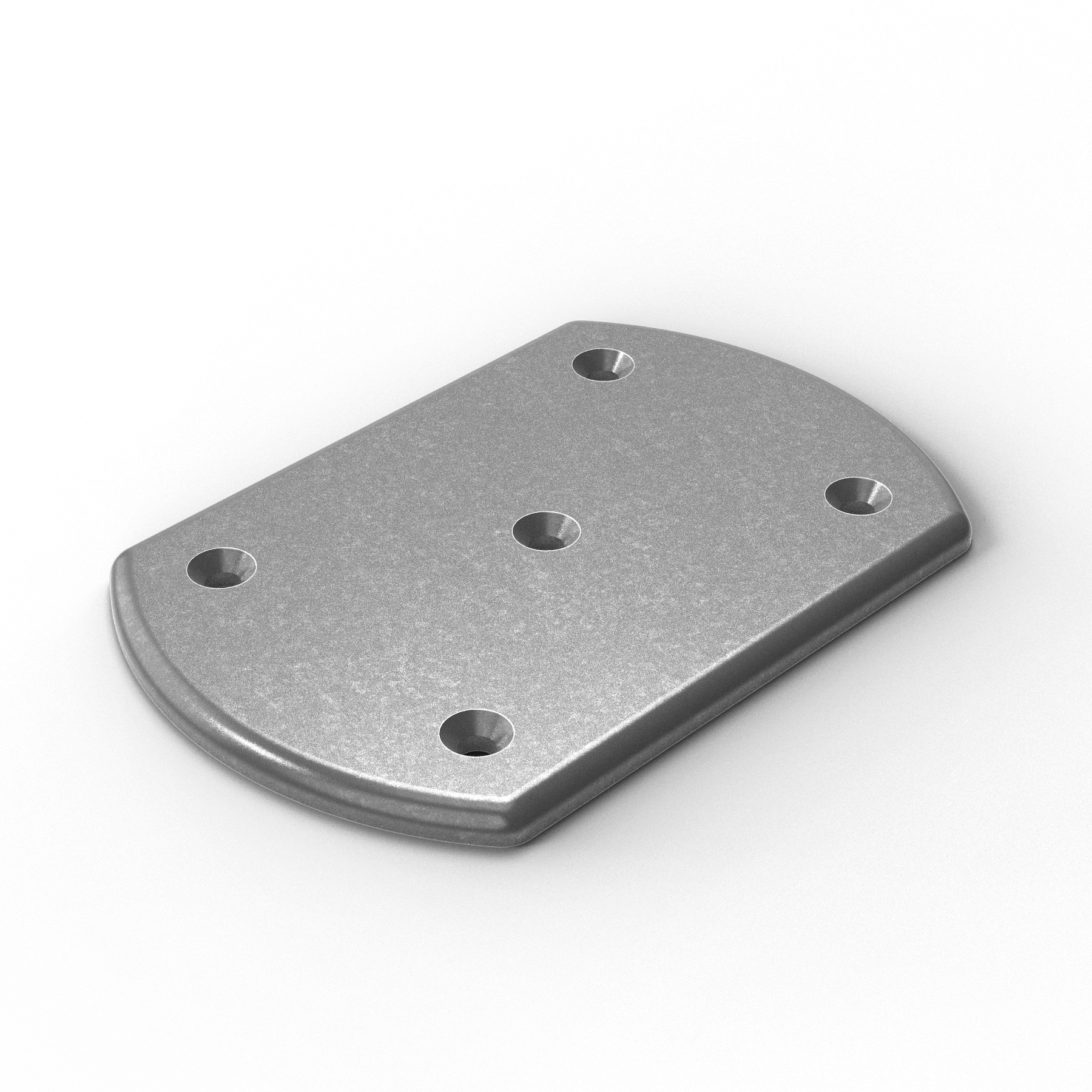

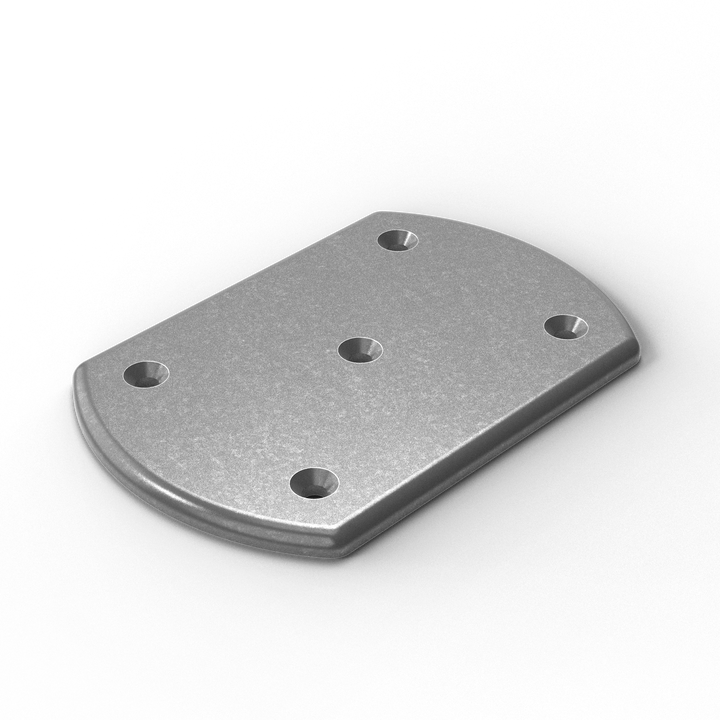

1023 1/4" Thick 6" x 4" Oblong Aluminum Countersunk Pad - ISO View

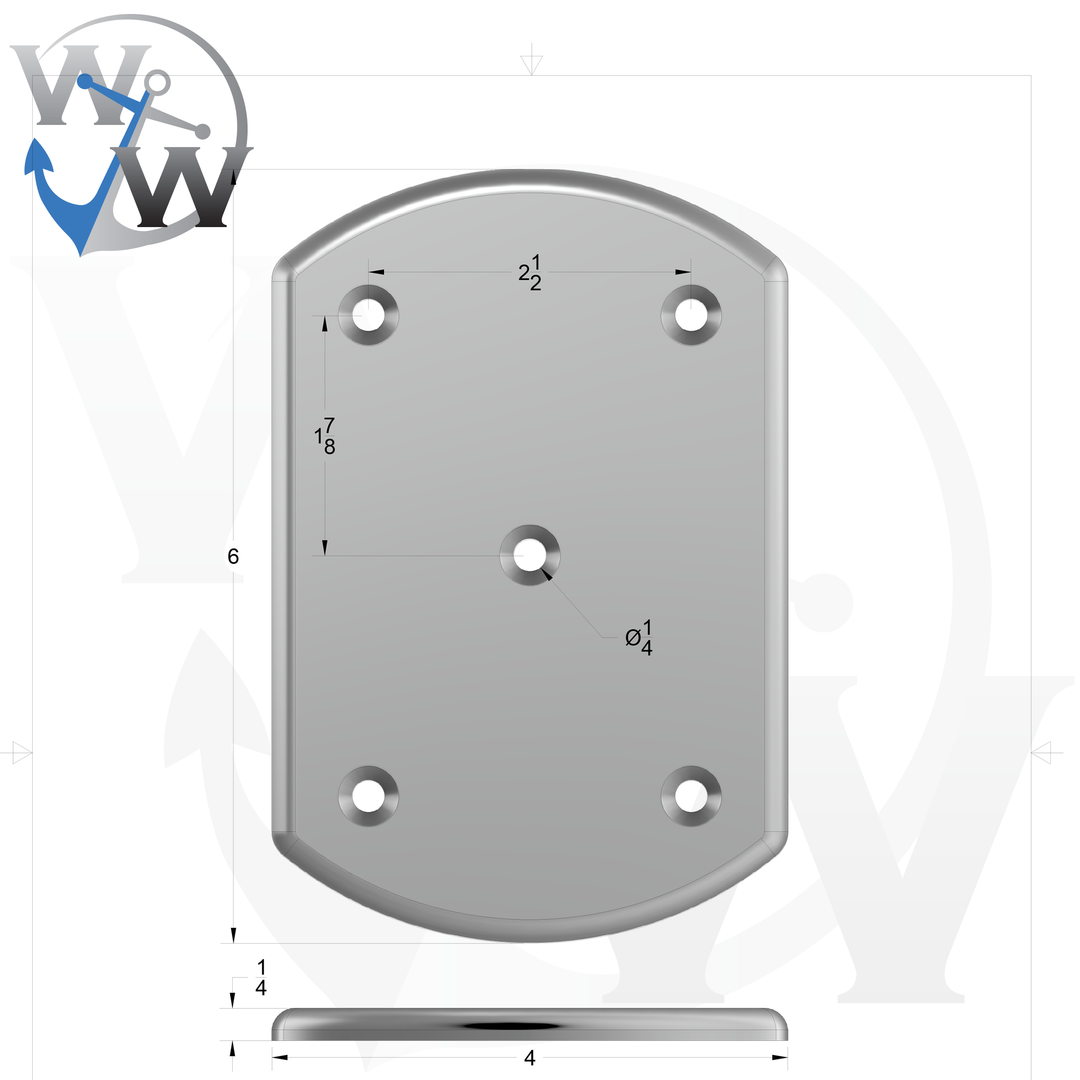

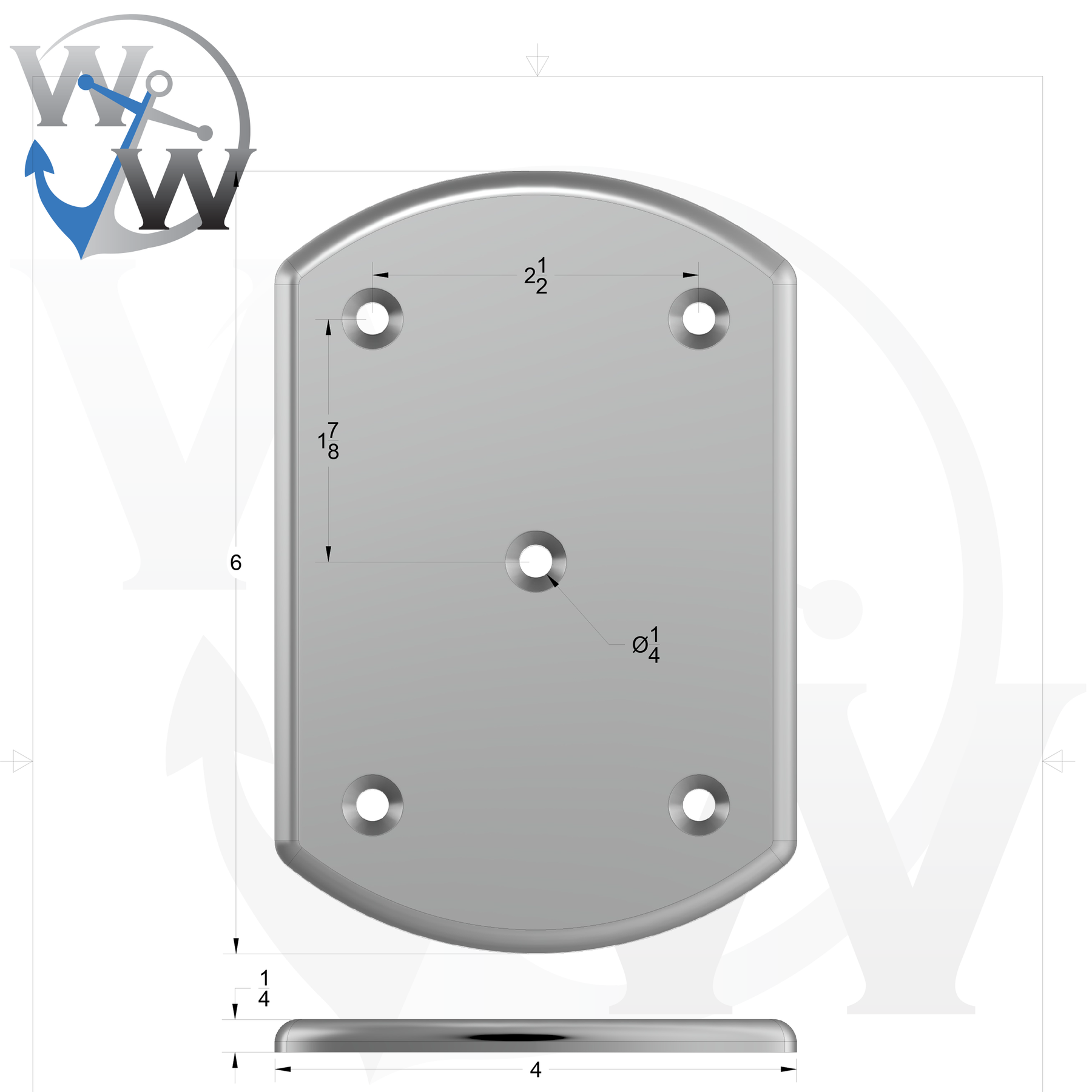

1023 1/4" Thick 6" x 4" Oblong Aluminum Countersunk Pad - Spec Sheet Drawing

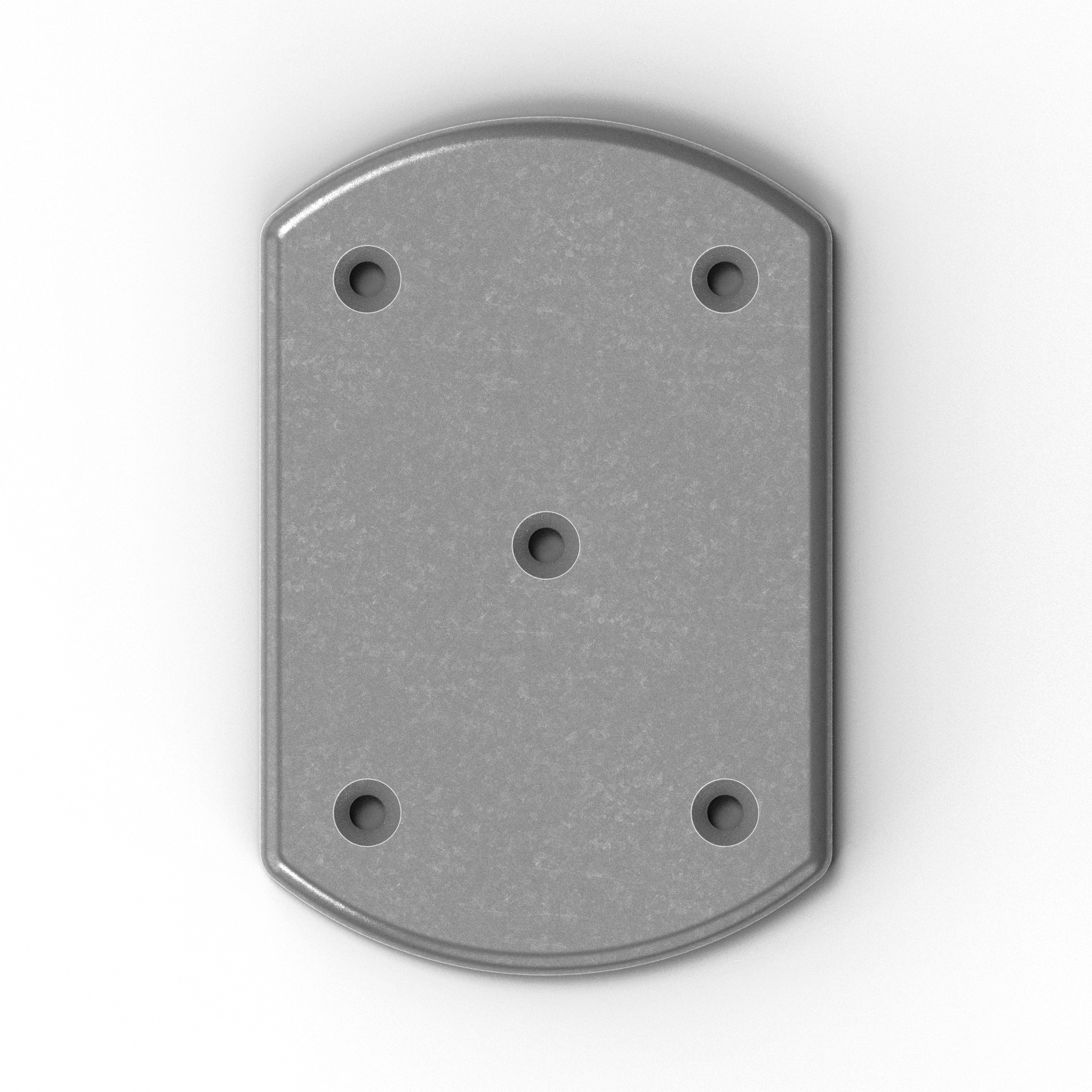

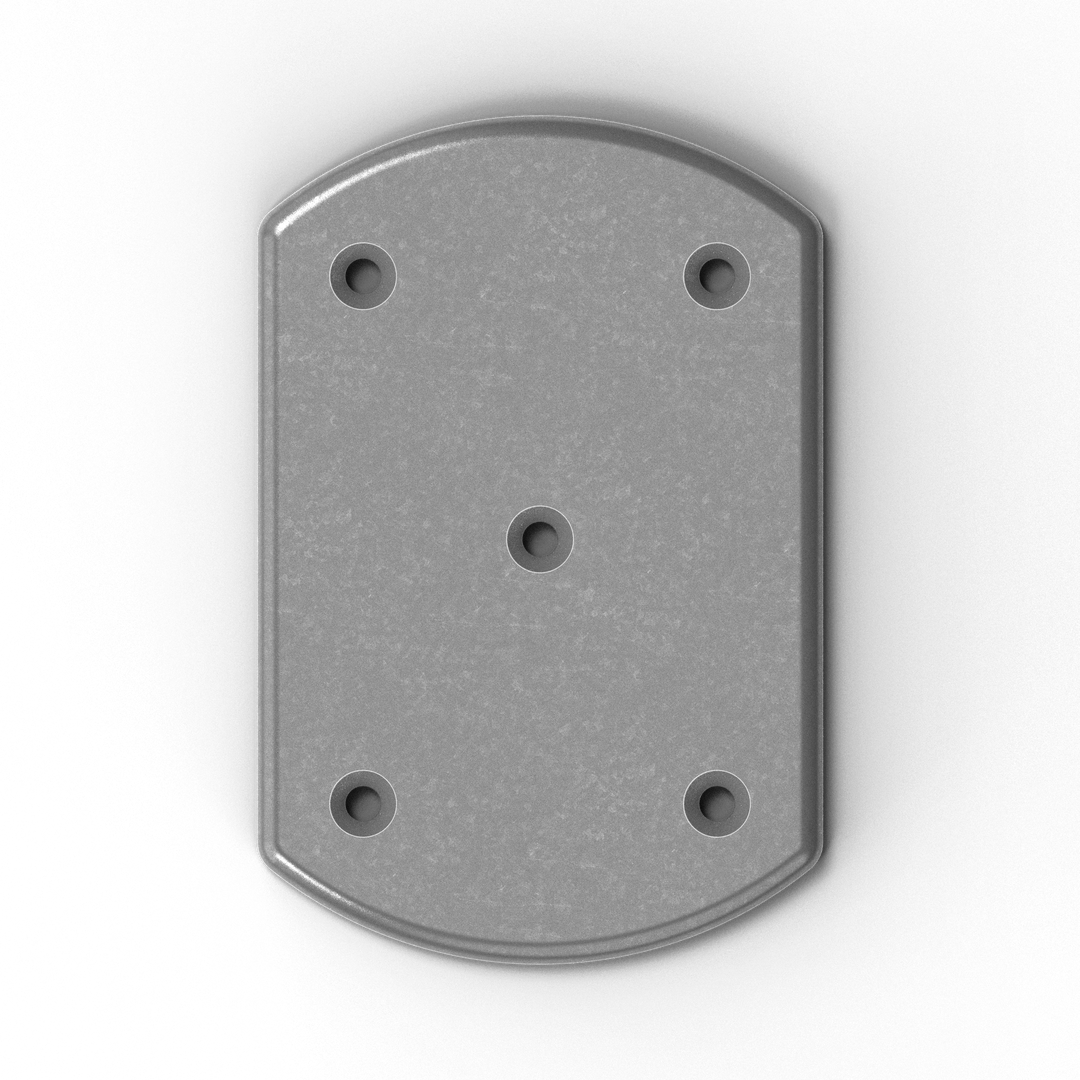

1023 1/4" Thick 6" x 4" Oblong Aluminum Countersunk Pad - Top View

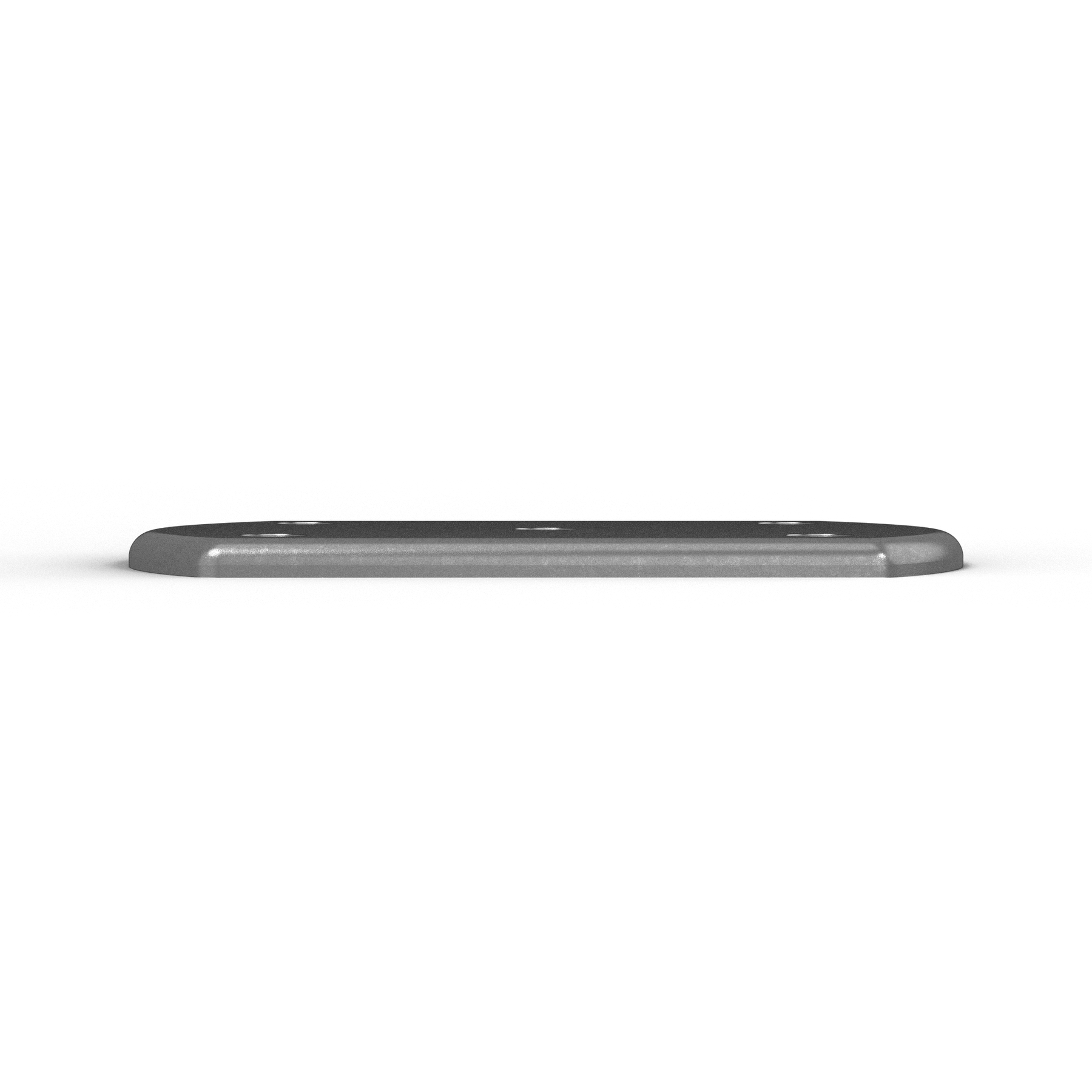

1023 1/4" Thick 6" x 4" Oblong Aluminum Countersunk Pad - Side Profile

1/4" Thick 6" x 4" Oblong Aluminum Countersunk Pad | 5 Countersunk Holes | Marine Grade 6061-T6

Part Number: 1023

Precio habitual$ 17.00
/

Oblong Countersunk Pad with 5 Countersunk Holes for Flat Pedestals

1/4" thick marine-grade 6061-T6 aluminum oblong countersunk pad with a 6" x 4" footprint and 5-hole countersunk pattern (4 perimeter + 1 center). The center hole provides additional fastening for high-stress installations. Countersunk holes ensure flush fastener seating.

Profile 6" x 4" Oblong
Thickness 1/4" (0.250")
Mounting Holes 5 Countersunk holes (4 perimeter + 1 center)
Finish Matte — paint/powder coat ready
Weight 0.519 lb

Common Applications

Flat pedestal mounting, hard top panel bases, T-top surface mounts, and structural deck installations requiring a center fastener for enhanced load distribution.

Frequently Asked Questions

What does a countersunk pad do?
A countersunk pad features conical holes that allow flat-head fasteners to sit flush with the pad surface, creating a smooth, low-profile appearance.

What is the 5-hole pattern for?
All 5 holes are countersunk — 4 perimeter plus 1 center — providing flush fastener seating across the full pattern. The center fastener prevents pad rotation under stress and is critical for high-load applications.
