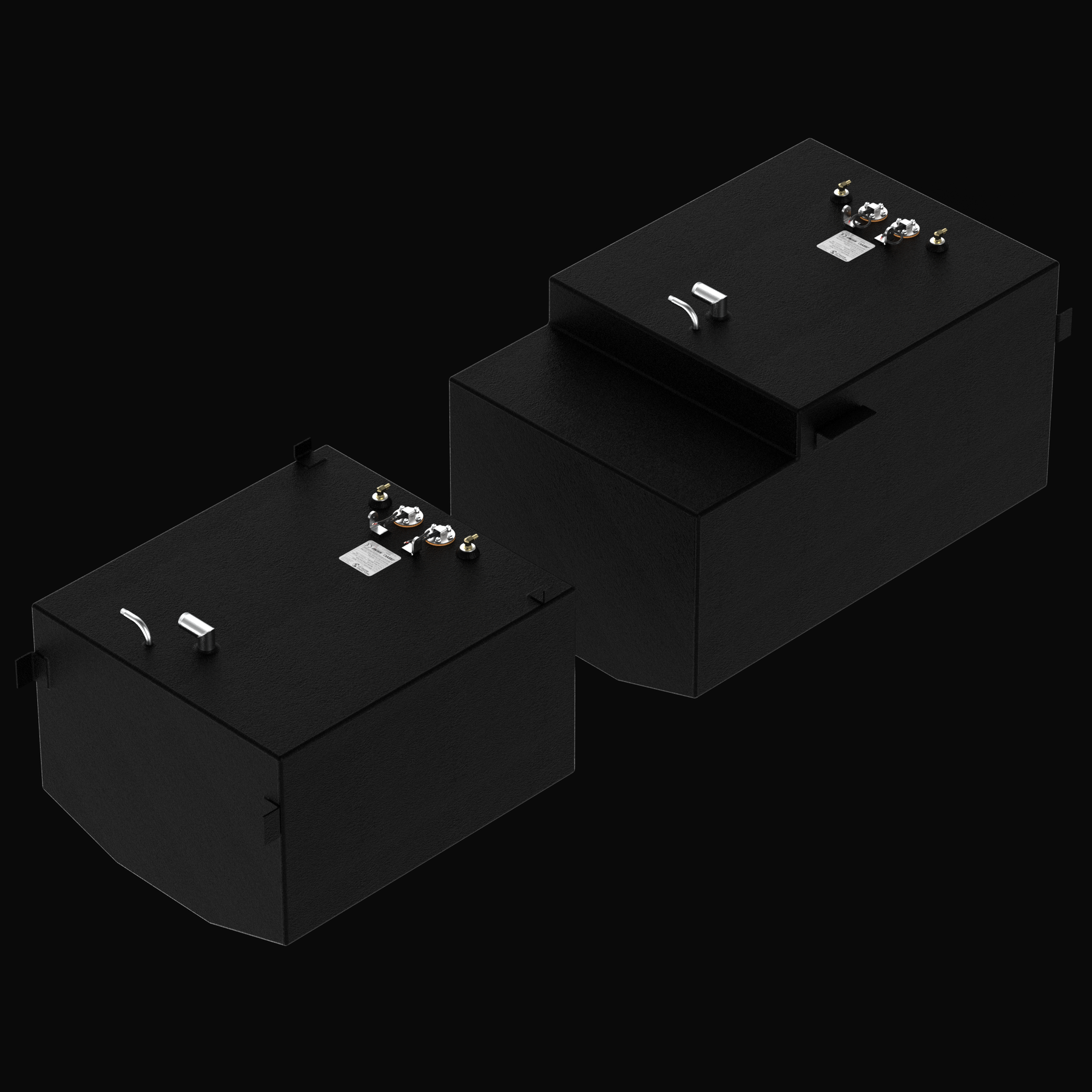

A high-angle isometric perspective rendering of a pair of black Blackfin 29 OEM replacement marine fuel tanks from file image_a4e0b0.jpg, isolated against a black background. This dimensional overview showcases both the port and starboard configurations of the custom-engineered center belly tank system, meticulously modeled by Welding World to sit flush within the vessel's hull stringer grid. Precision-fabricated from heavy-gauge marine-grade 5052-H32 aluminum, the structural 162-gallon total capacity fluid

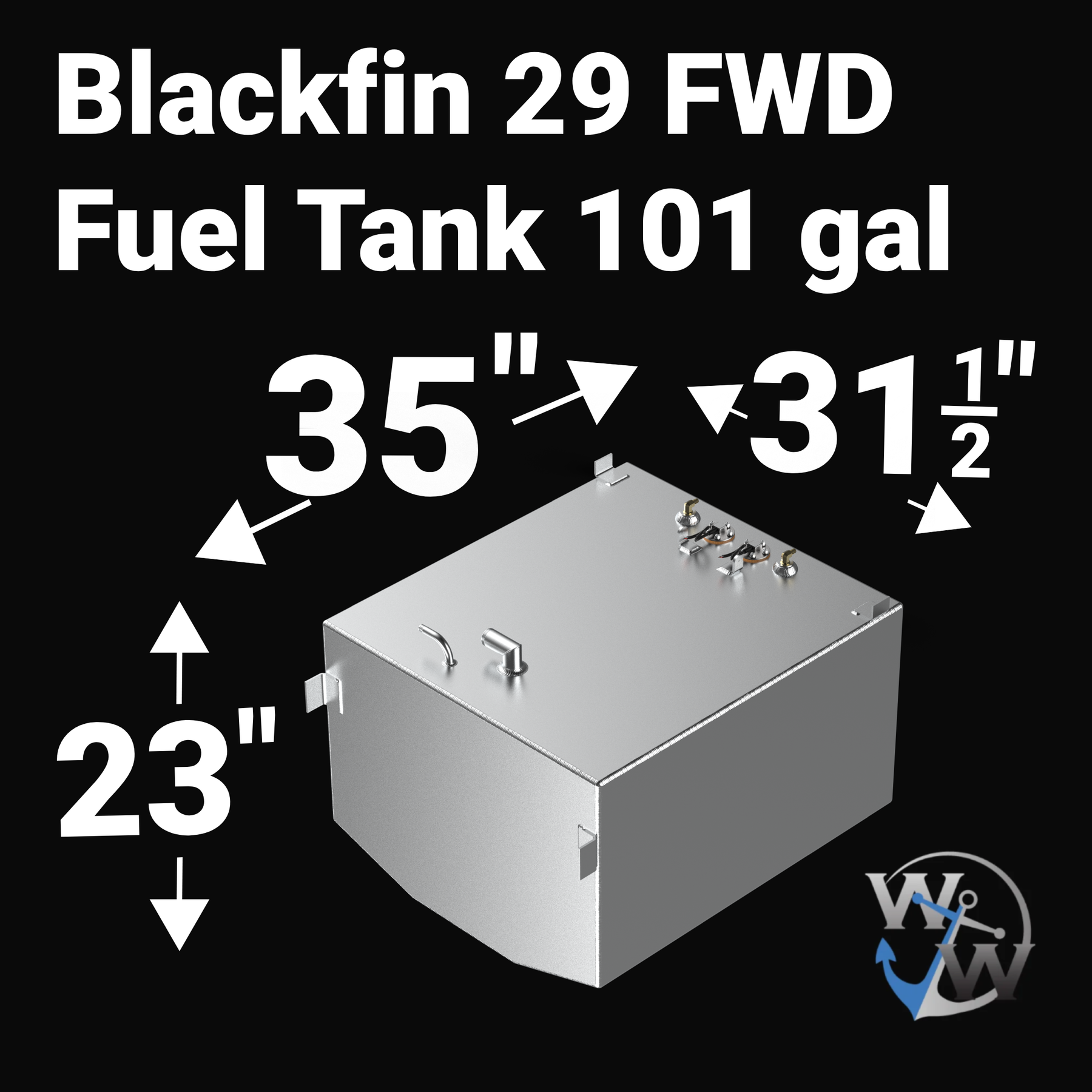

A high-angle isometric product graphic diagram of a raw aluminum Blackfin 29 FWD (Forward) OEM replacement marine fuel tank from file image_b2808a.jpg, isolated against a black background. Large white bold text overlays detail the exact physical dimensions, specifying a 101-gallon capacity, a length of 35 inches, a width of 31-1/2 inches, and a height of 23 inches. The CAD rendering highlights the specialized V-shaped bottom deadrise profile custom-engineered by Welding World to sit perfectly flush within t

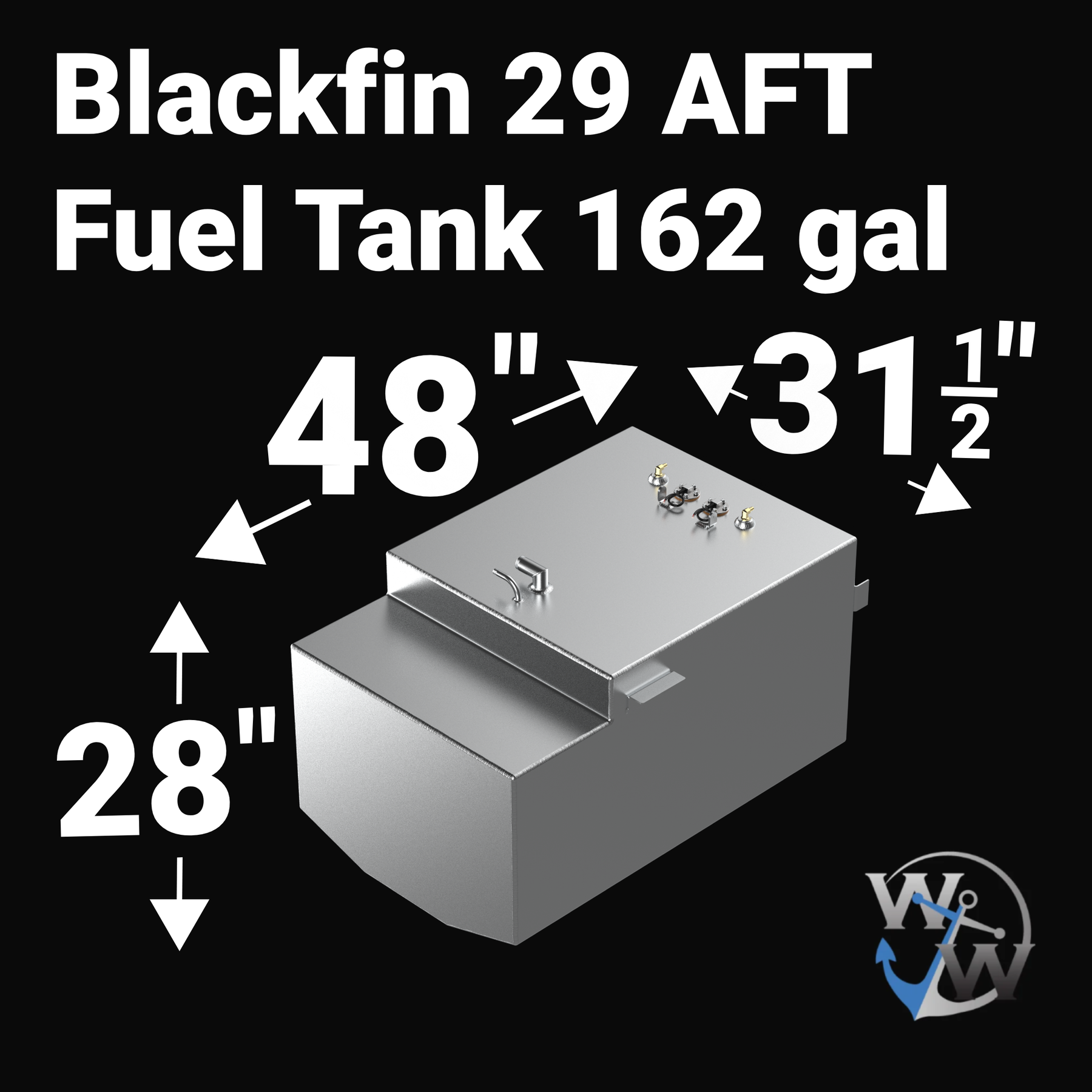

A high-angle isometric product graphic diagram of a raw aluminum Blackfin 29 AFT (Aft) OEM replacement marine fuel tank from file image_b283b0.jpg, isolated against a black background. Large white bold text overlays detail the exact physical dimensions, specifying a 162-gallon capacity, a length of 48 inches, a width of 31-1/2 inches, and a height of 28 inches. The CAD rendering highlights the specialized stepped-deck geometry and V-shaped bottom deadrise profile custom-engineered by Welding World to sit pe

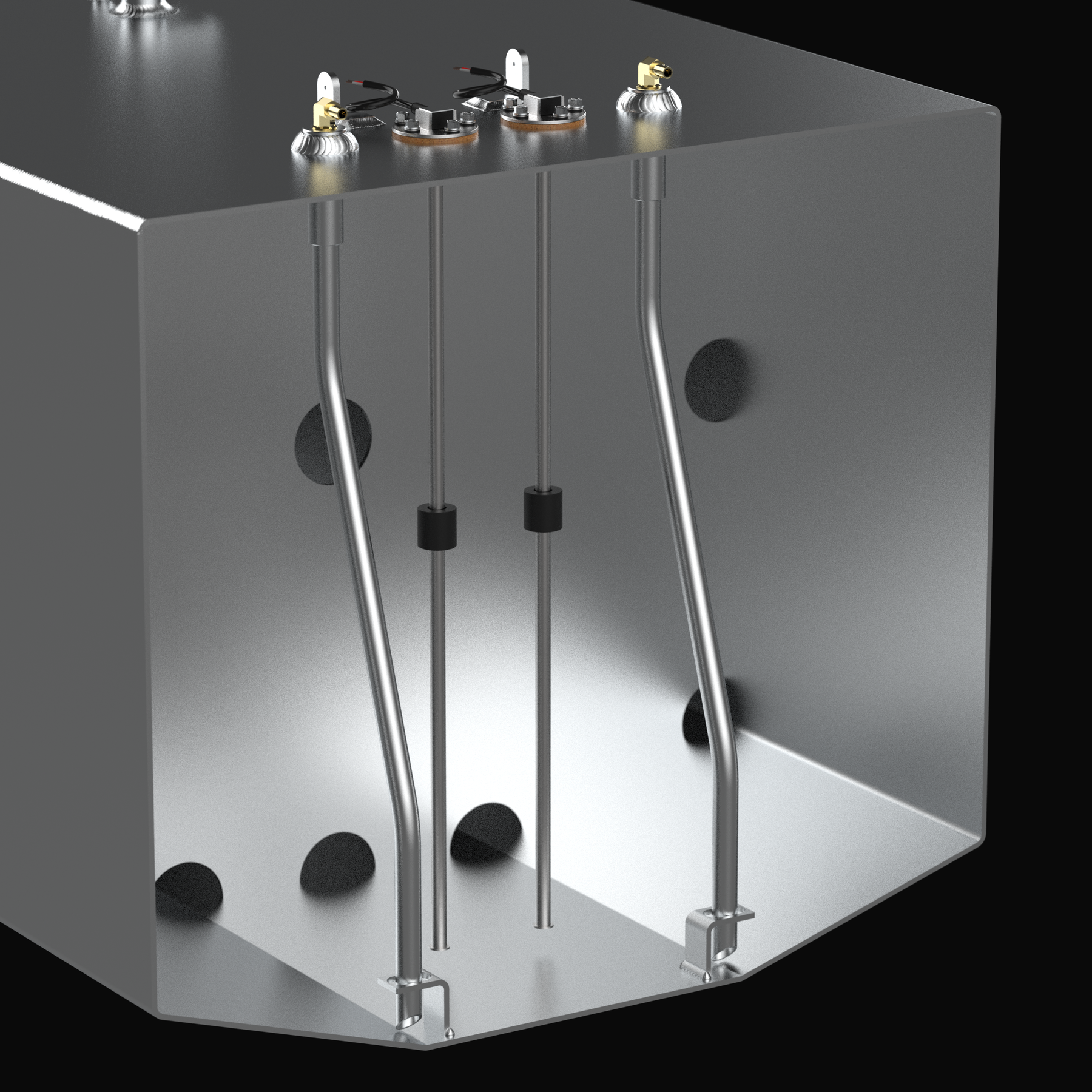

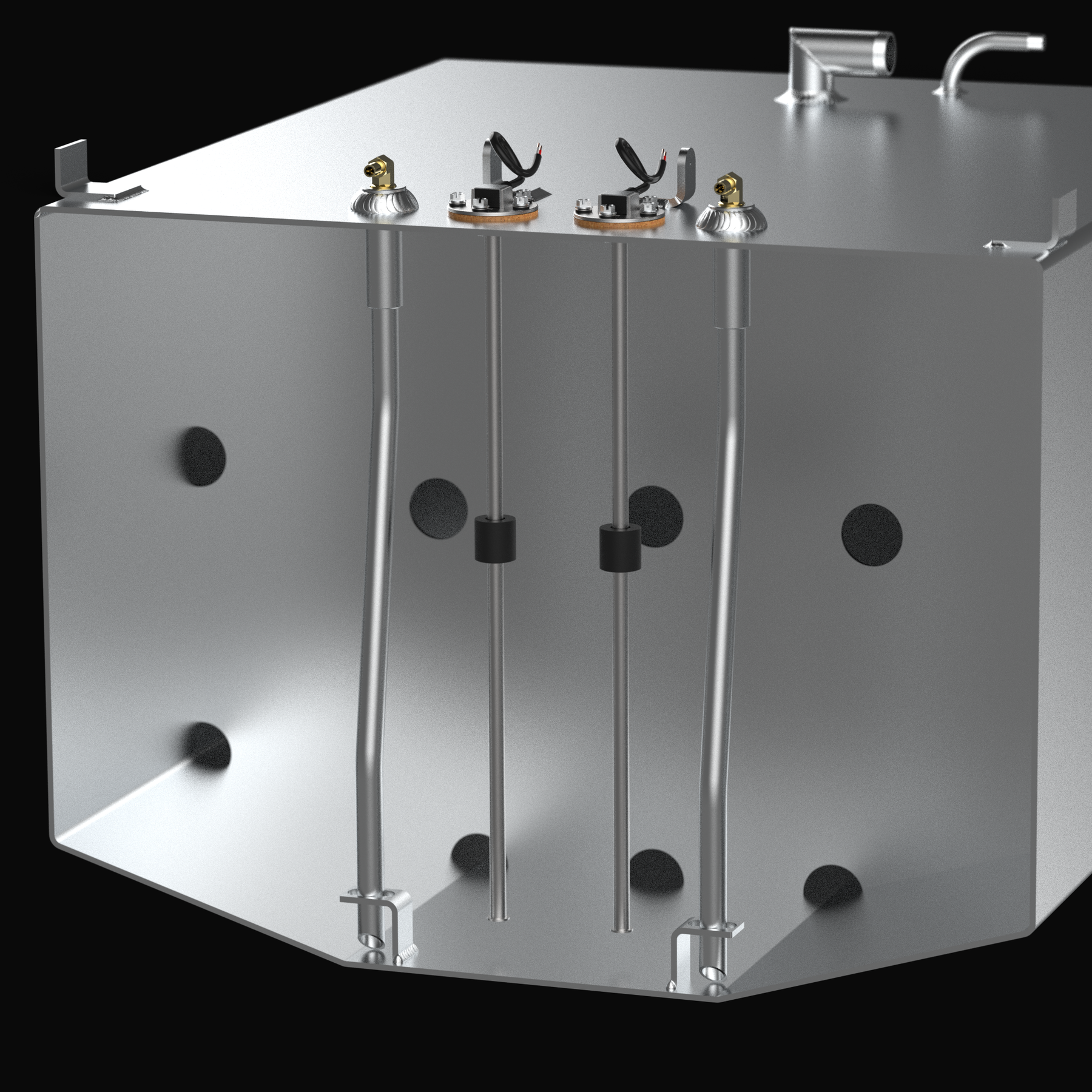

A close-up, cutaway technical rendering of the internal dual pickup assembly, dual sending units, and baffle system of a raw aluminum Blackfin 29 replacement marine fuel tank from file image_a704a0.jpg, isolated against a black background. This transparent cross-sectional view showcases the high-performance internal engineering designed by Welding World to eliminate fuel starvation, revealing dual rigid aluminum fuel pickup tubes extending from top-deck brass 90-degree elbows down to the deepest point of th
A close-up internal cutaway technical rendering of the dual fuel pickup assemblies, dual electronic sending units, and internal baffling inside a raw aluminum Blackfin 29 OEM replacement marine fuel tank from file image_a865ba.jpg, isolated against a black background. This detailed cross-sectional view showcases the high-performance engineering by Welding World to prevent fuel starvation under aggressive offshore conditions, revealing two rigid aluminum fuel pickup tubes running from top-deck brass 90-degre
Blackfin 29 Fuel Tank AFT (162 gal) FWD (101 gal) 2-tank combo | OEM Replacement

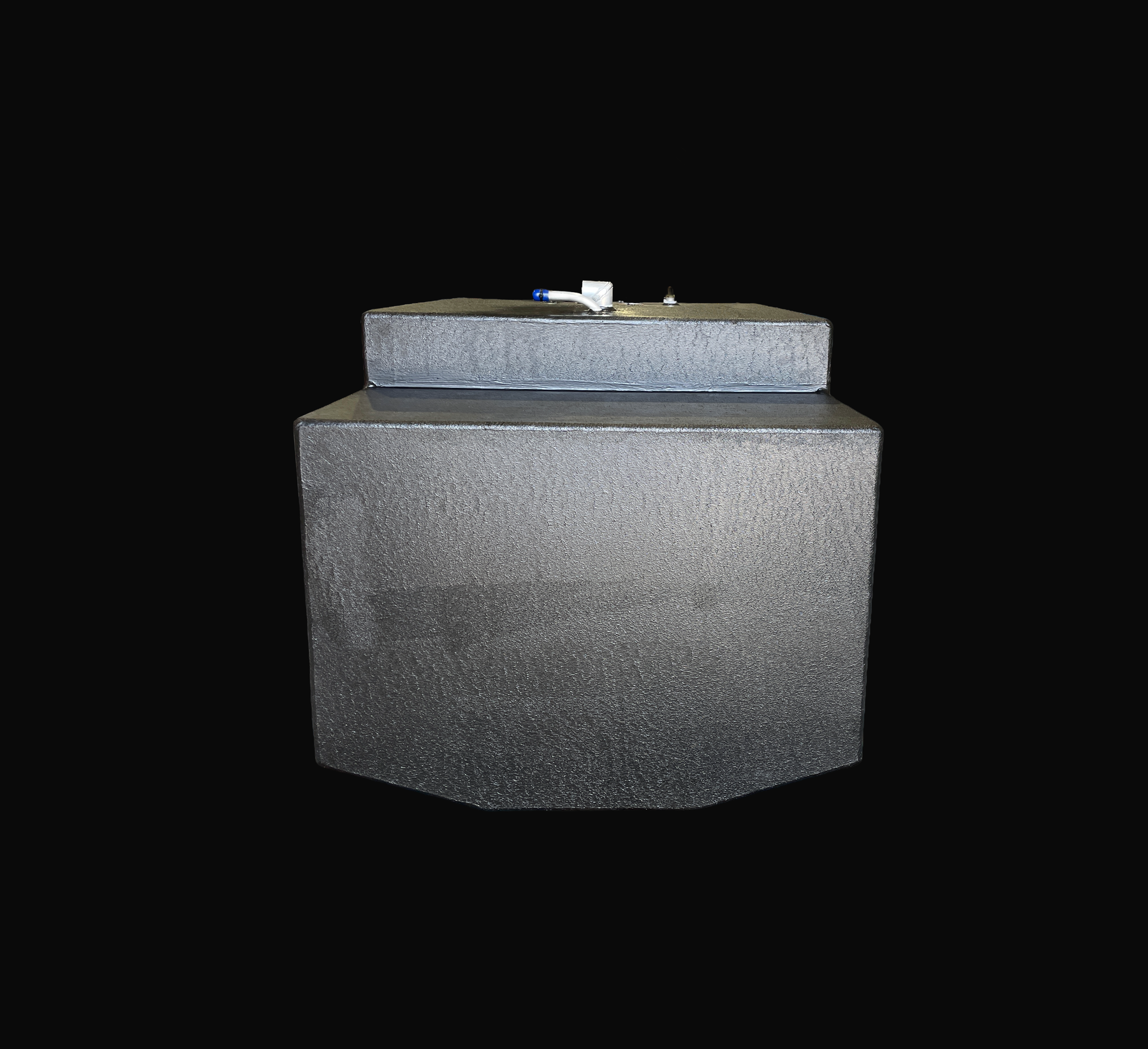

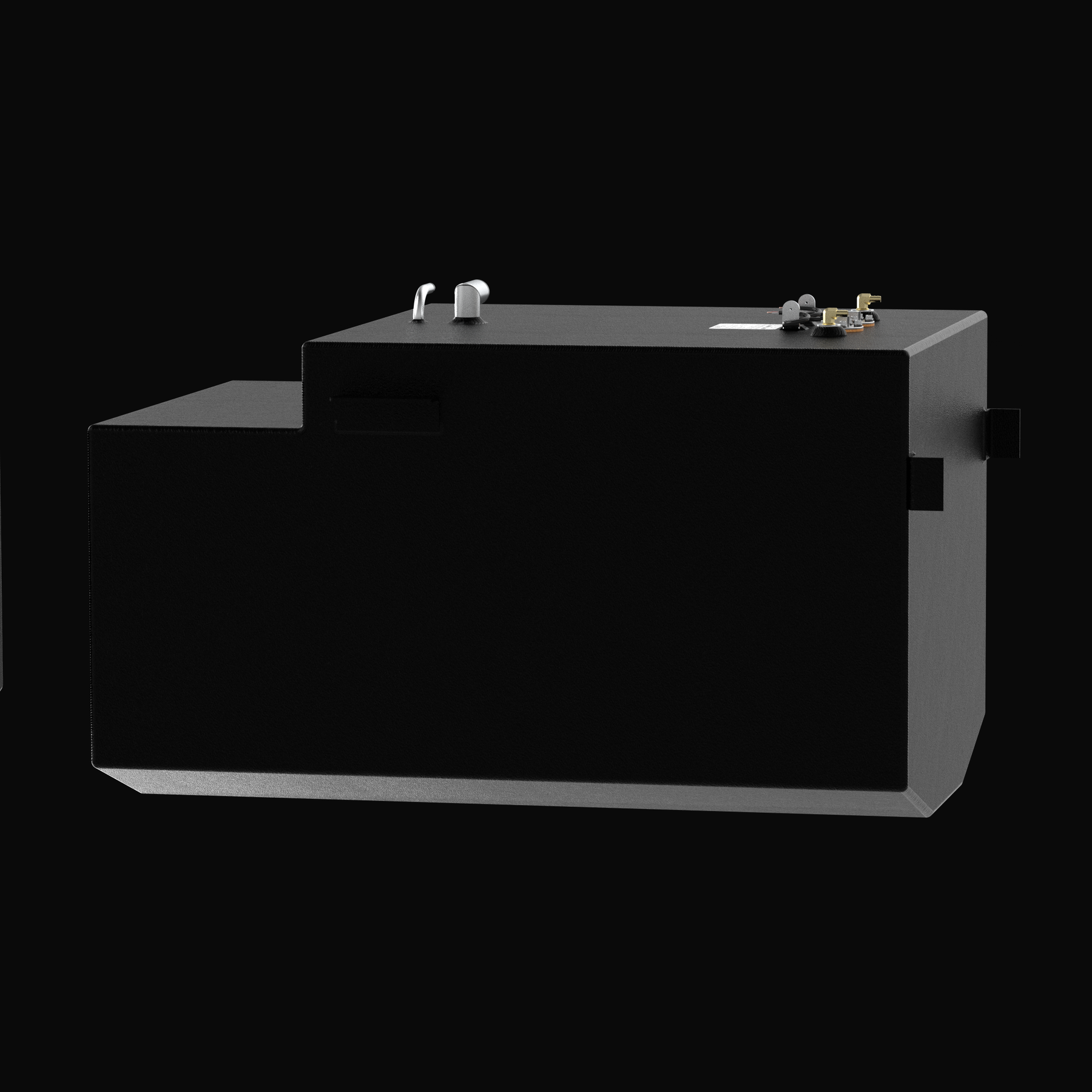

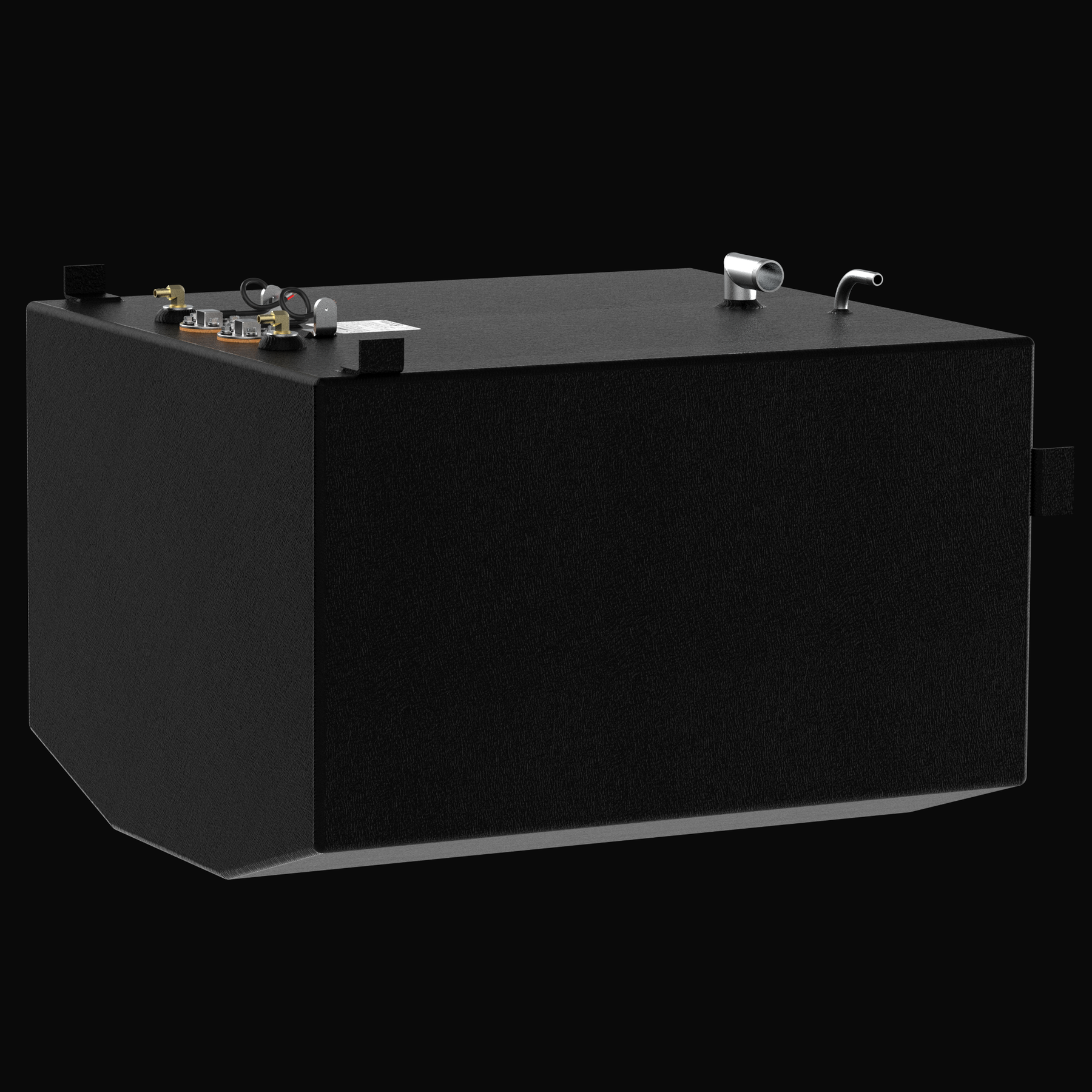

A low-angle side elevation rendering of a black Blackfin 29 OEM replacement marine fuel tank from file image_a6b2e6.jpg, isolated against a black background. This perspective showcases the stepped structural profile and specialized V-shaped bottom deadrise geometry, custom-engineered by Welding World to sit perfectly flush within the vessel's hull stringer grid. Precision-fabricated from heavy-gauge marine-grade 5052-H32 aluminum, the structural 162-gallon capacity fuel cell is fully encapsulated in an anti
Blackfin 29 Fuel Tank AFT (162 gal) FWD (101 gal) 2-tank combo | OEM Replacement

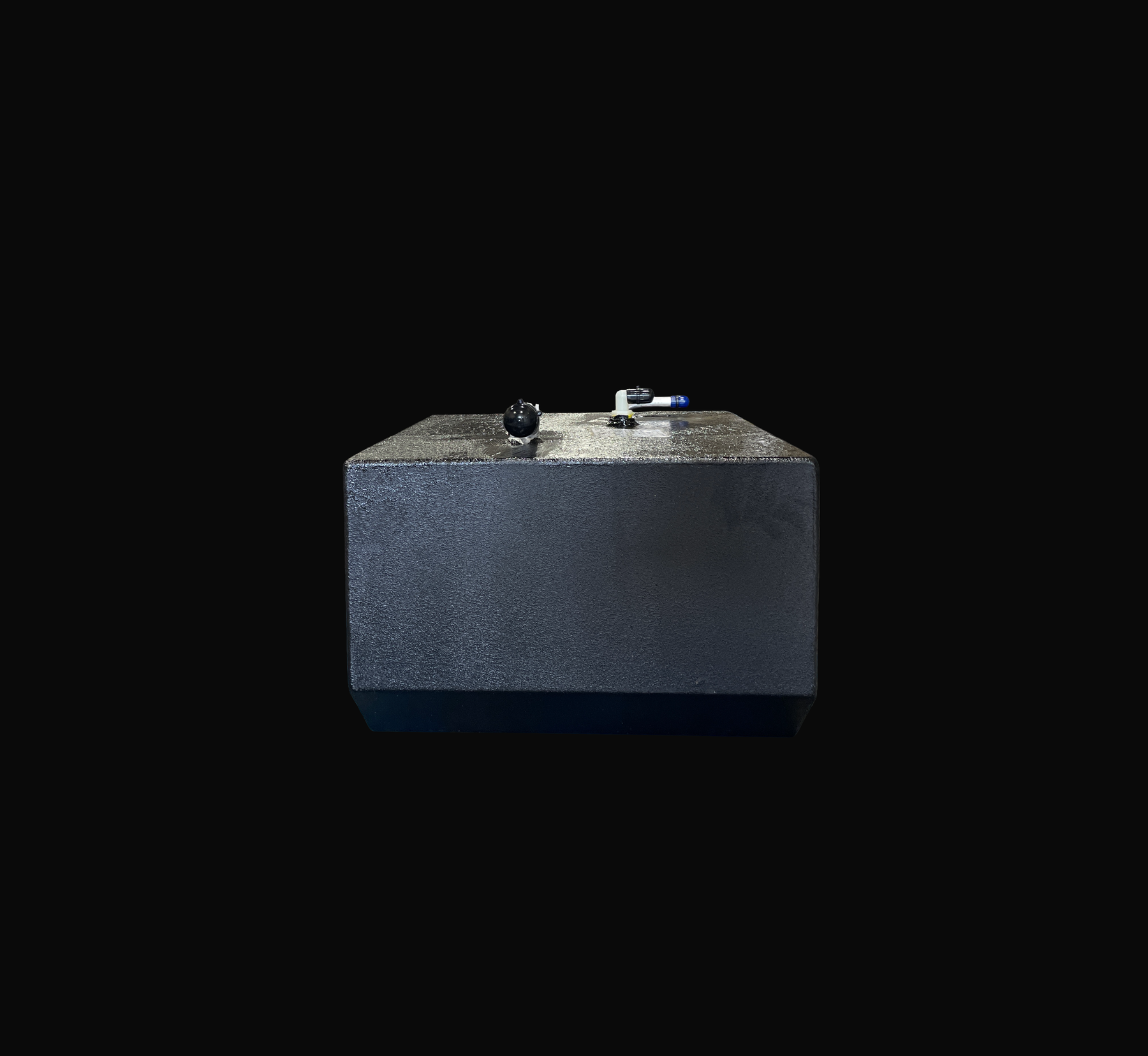

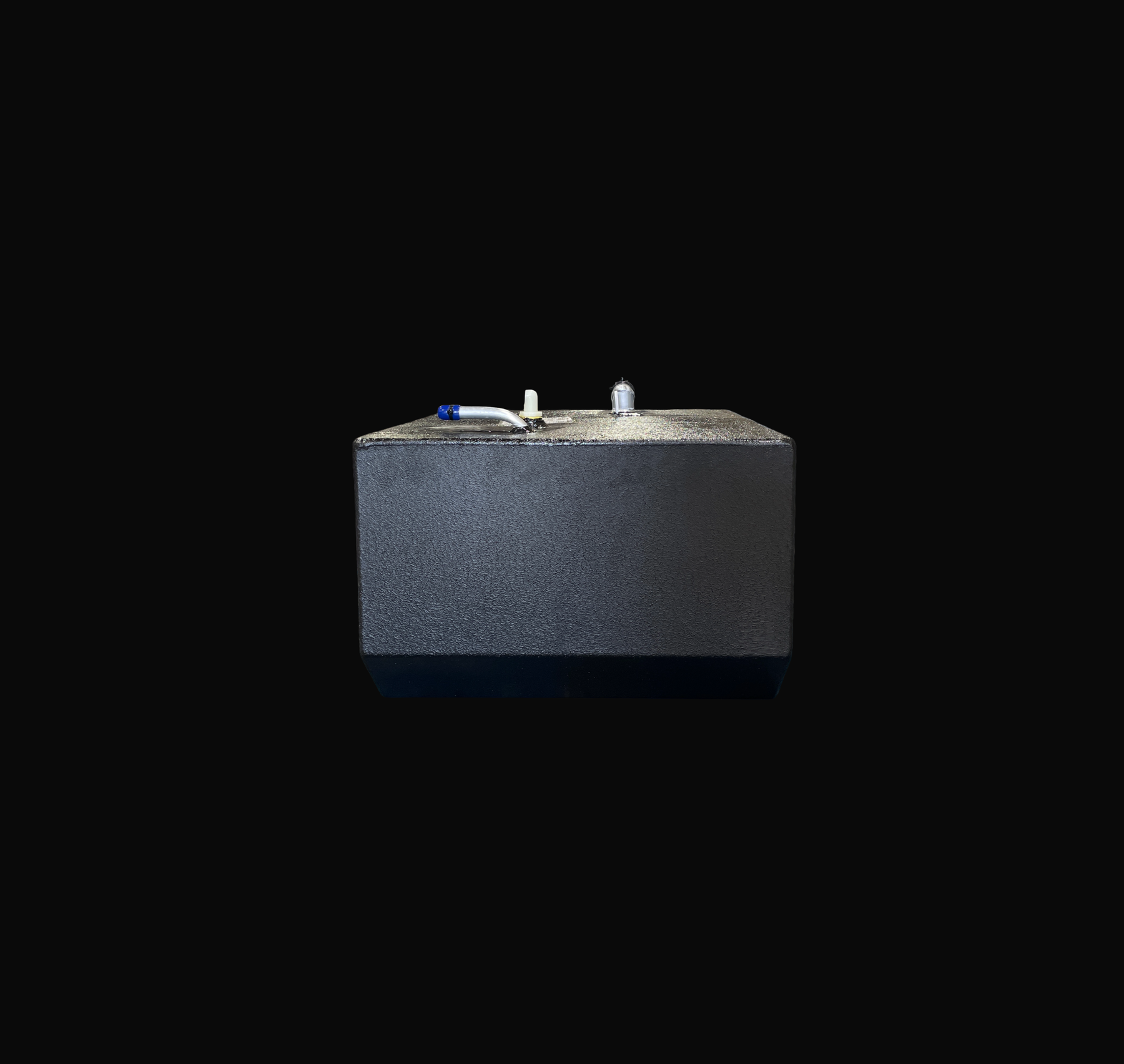

A low-angle perspective rendering of a black Blackfin 29 OEM replacement marine fuel tank from file image_a7051c.jpg, isolated against a black background. This dimensional view showcases the tank's shorter end-profile geometry and highlights its specialized V-shaped bottom deadrise profile, custom-engineered to sit flush within the vessel's hull stringer grid. Precision-fabricated from heavy-gauge marine-grade 5052-H32 aluminum, the structural 162-gallon capacity fuel cell is fully encapsulated in an anti-c
Blackfin 29 Fuel Tank AFT (162 gal) FWD (101 gal) 2-tank combo | OEM Replacement

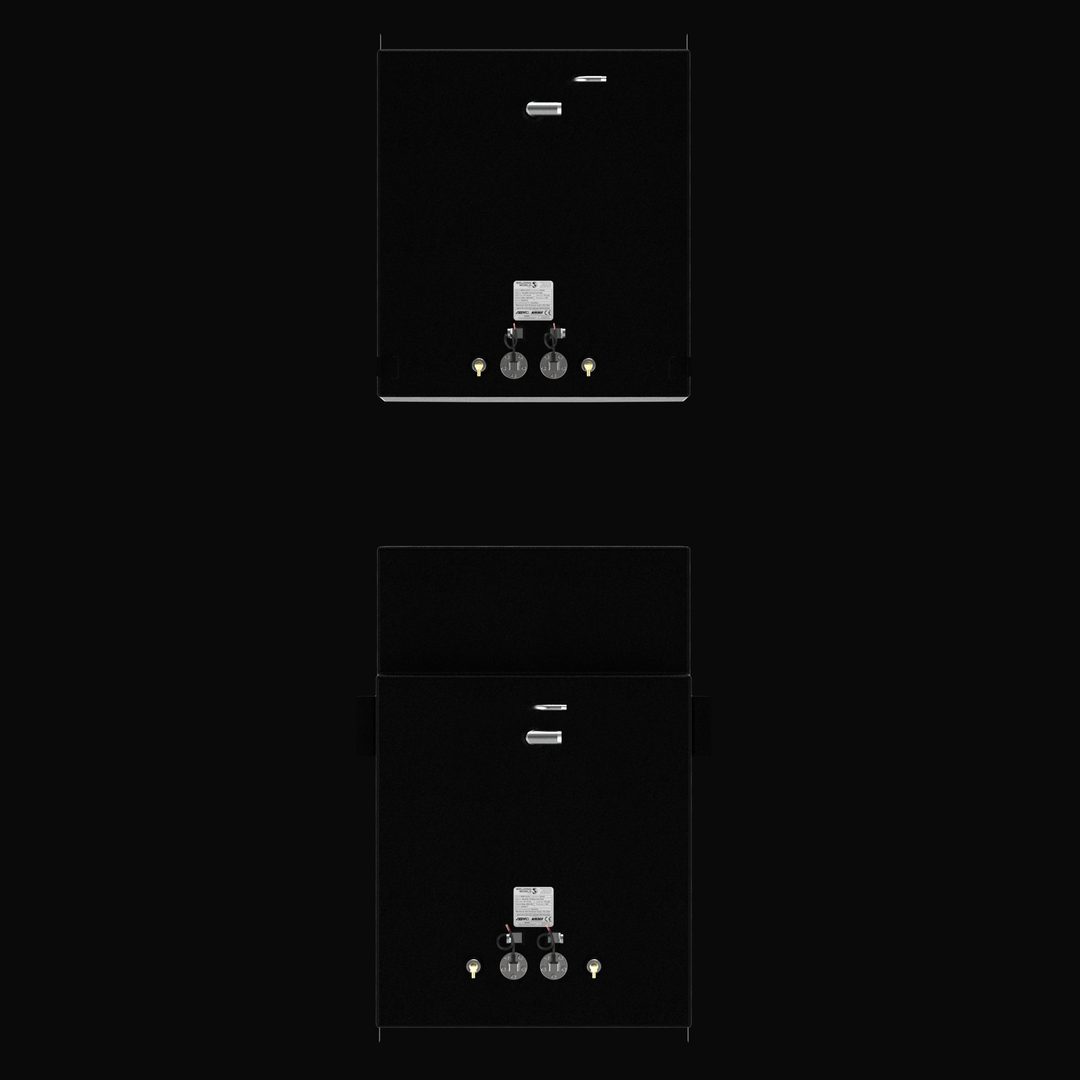

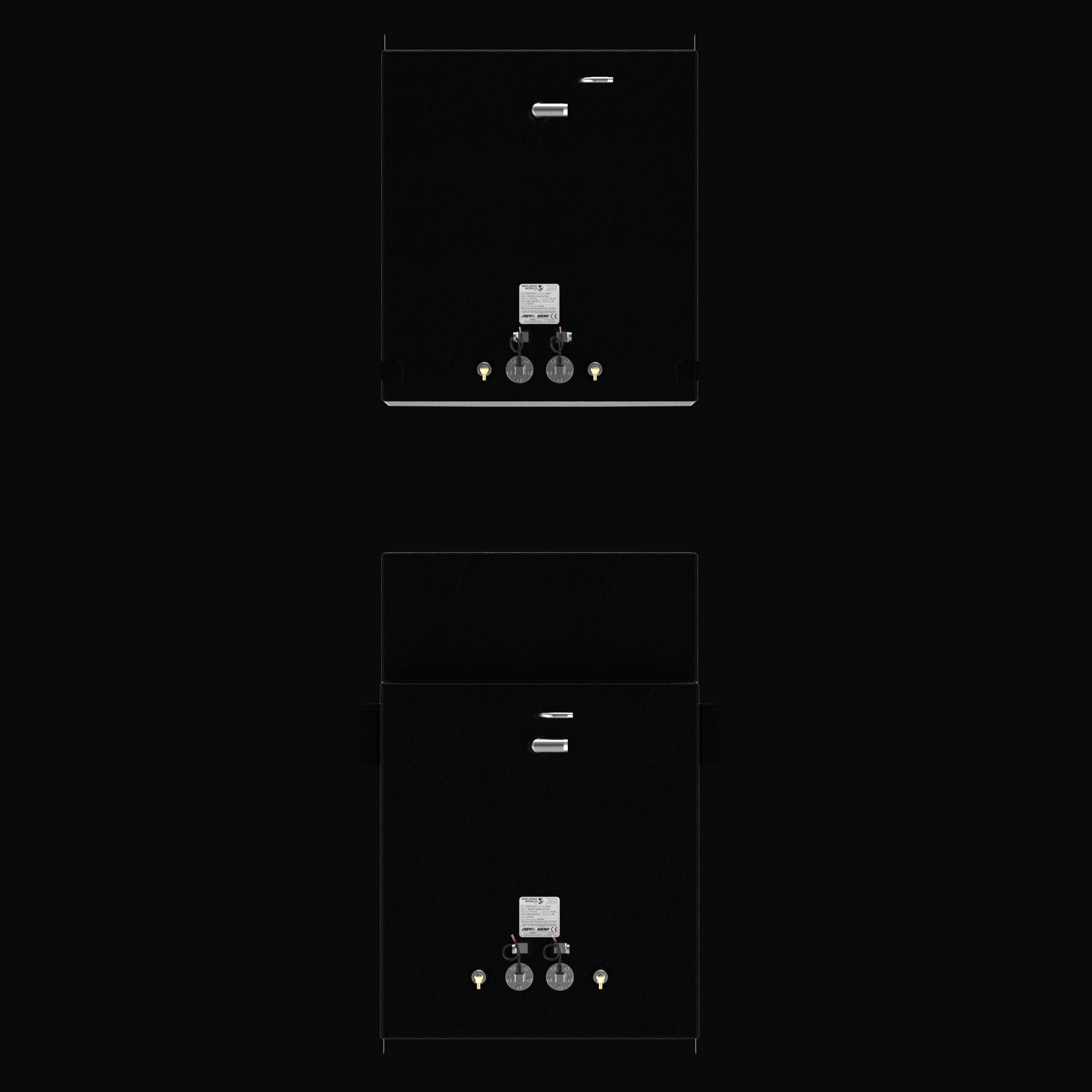

A top-down bird's-eye perspective view of a pair of black Blackfin 29 OEM replacement marine fuel tanks from file image_a70577.jpg, isolated against a black background. This vertical overview clearly layouts the symmetrical top-deck layout for both the port and starboard configurations, showcasing the specialized plumbing hardware engineered by Welding World. Precision-fabricated from heavy-gauge marine-grade 5052-H32 aluminum, the structural 162-gallon capacity fuel cells are completely encapsulated in a t
Blackfin 29 Fuel Tank AFT (162 gal) FWD (101 gal) 2-tank combo | OEM Replacement
Blackfin 29 Fuel Tank AFT (162 gal) FWD (101 gal) 2-tank combo | OEM Replacement

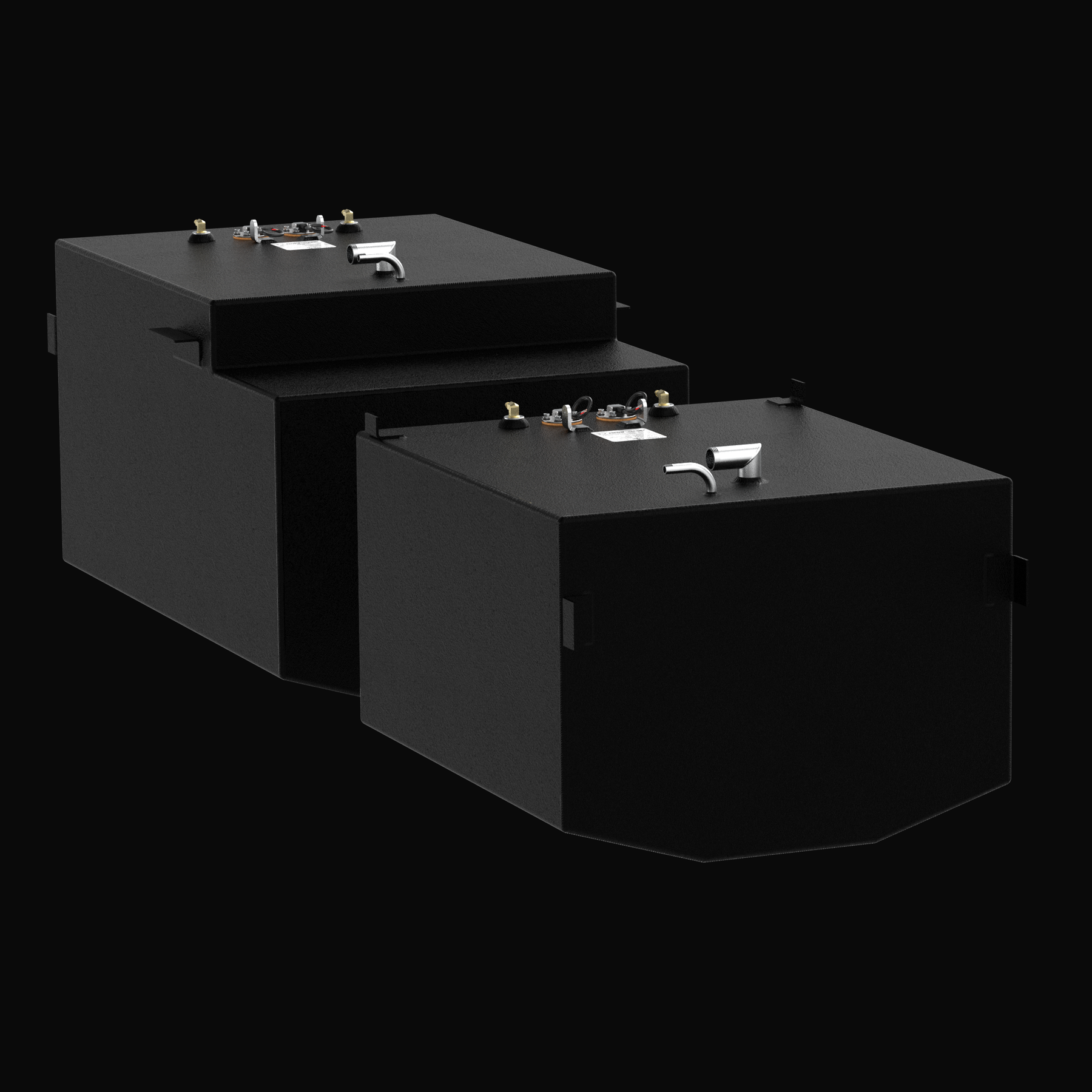

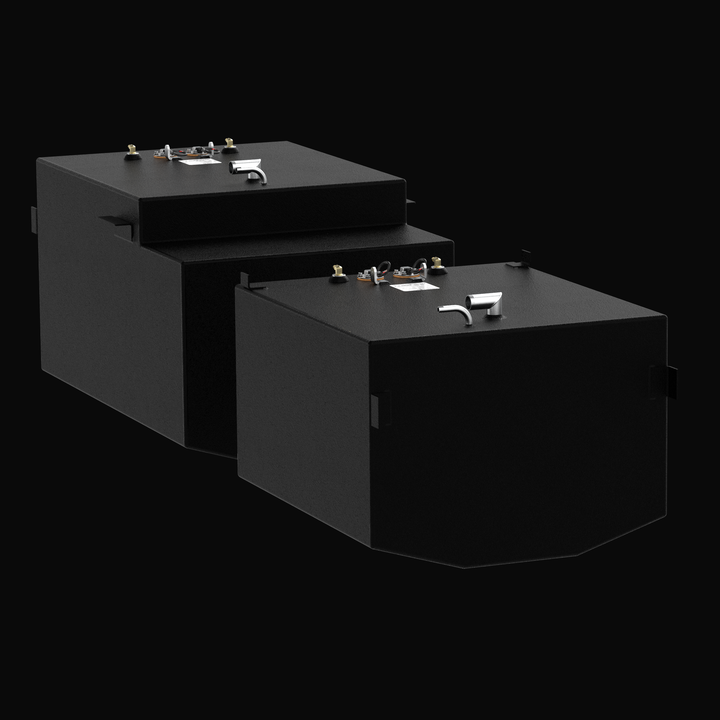

A low-angle isometric perspective rendering of a pair of black Blackfin 29 OEM replacement marine fuel tanks from file image_a708fe.jpg, isolated against a black background. This dimensional front-end view showcases both the port and starboard configurations of the custom-engineered center belly tank system, highlighting their specialized V-shaped bottom profiles designed by Welding World to sit flush within the vessel's hull stringer grid. Precision-fabricated from heavy-gauge marine-grade 5052-H32 aluminu
Blackfin 29 Fuel Tank AFT (162 gal) FWD (101 gal) 2-tank combo | OEM Replacement

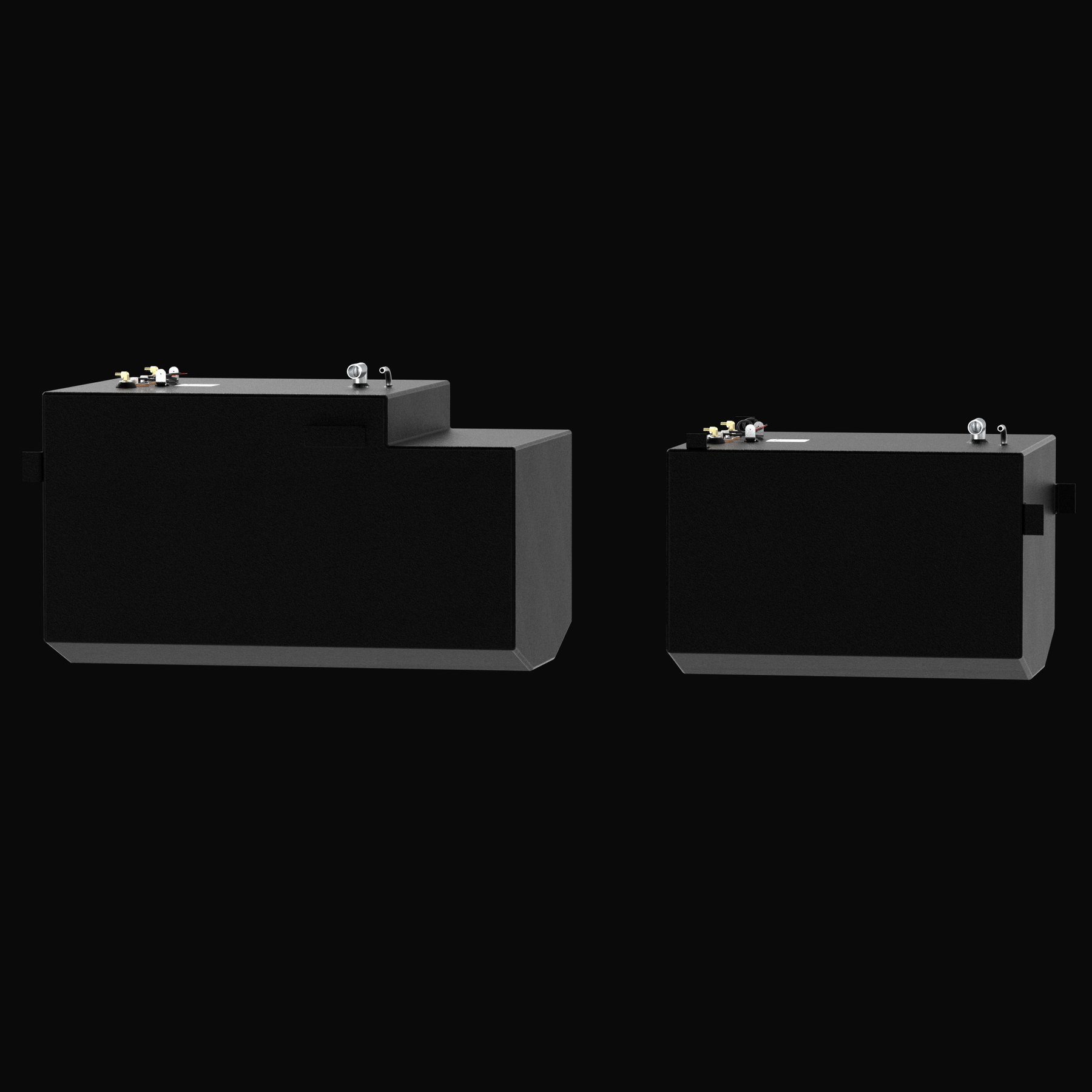

A low-angle side elevation rendering of a pair of black Blackfin 29 OEM replacement marine fuel tanks from file image_a70c02.png, isolated against a black background. This perspective showcases both the stepped structural tank and the standard straight profile of the custom-engineered center belly tank system, highlighting their specialized V-shaped bottom deadrise profiles designed by Welding World to sit flush within the vessel's central hull stringer grid. Precision-fabricated from heavy-gauge marine-gra
Blackfin 29 Fuel Tank AFT (162 gal) FWD (101 gal) 2-tank combo | OEM Replacement
Blackfin 29 Fuel Tank AFT (162 gal) FWD (101 gal) 2-tank combo | OEM Replacement
Blackfin 29 Fuel Tank AFT (162 gal) FWD (101 gal) 2-tank combo | OEM Replacement

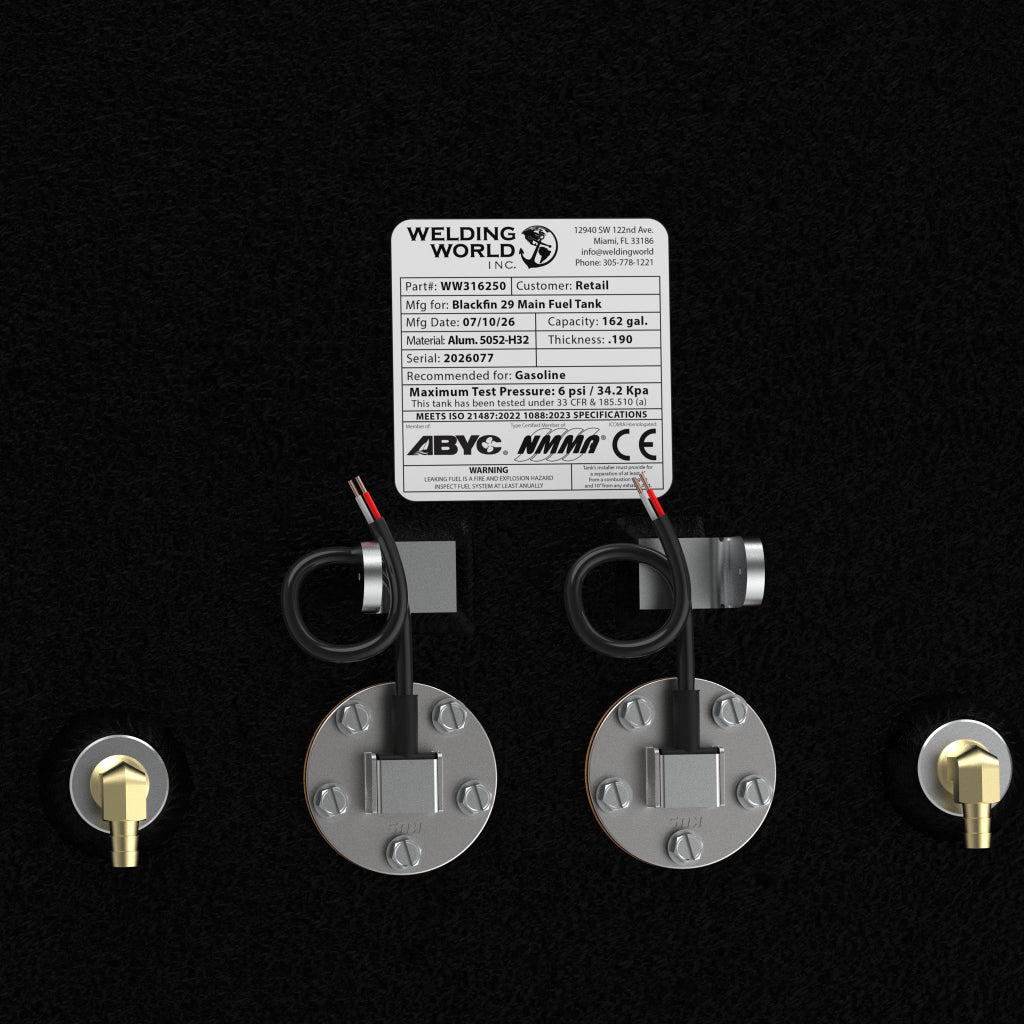

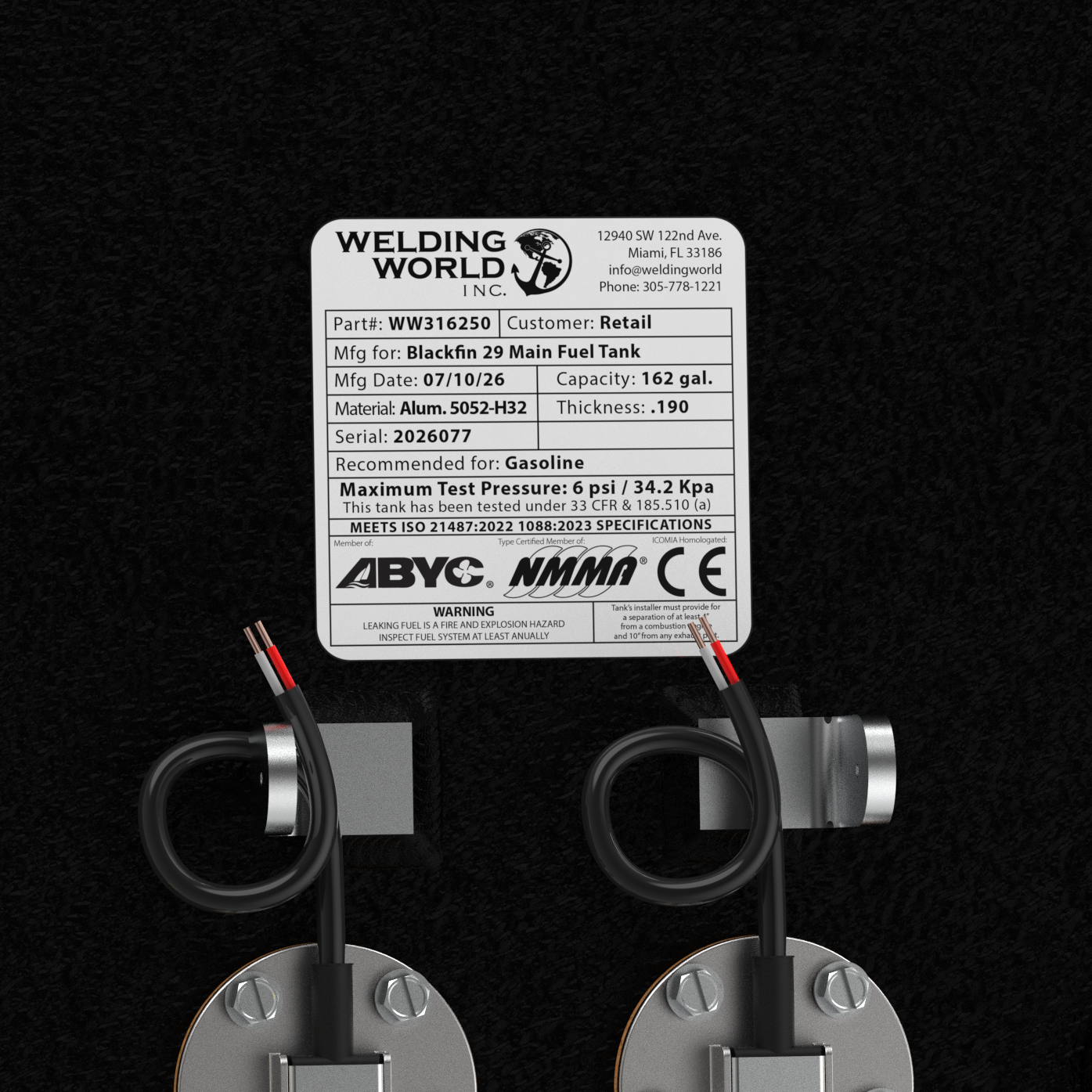

A close-up overhead rendering focusing on the official manufacturer specification placard, dual fuel level sending units, and fuel pickups on a black Blackfin 29 OEM replacement marine fuel tank from file image_a86902.jpg, isolated against a black background. The white weather-resistant data plate highlights precision engineering by Welding World Inc. in Miami, FL, explicitly listing Part Number WW316250, a 162-gallon capacity, heavy-gauge marine-grade 5052-H32 aluminum material construction with a 0.190-in
Blackfin 29 Fuel Tank AFT (162 gal) FWD (101 gal) 2-tank combo | OEM Replacement

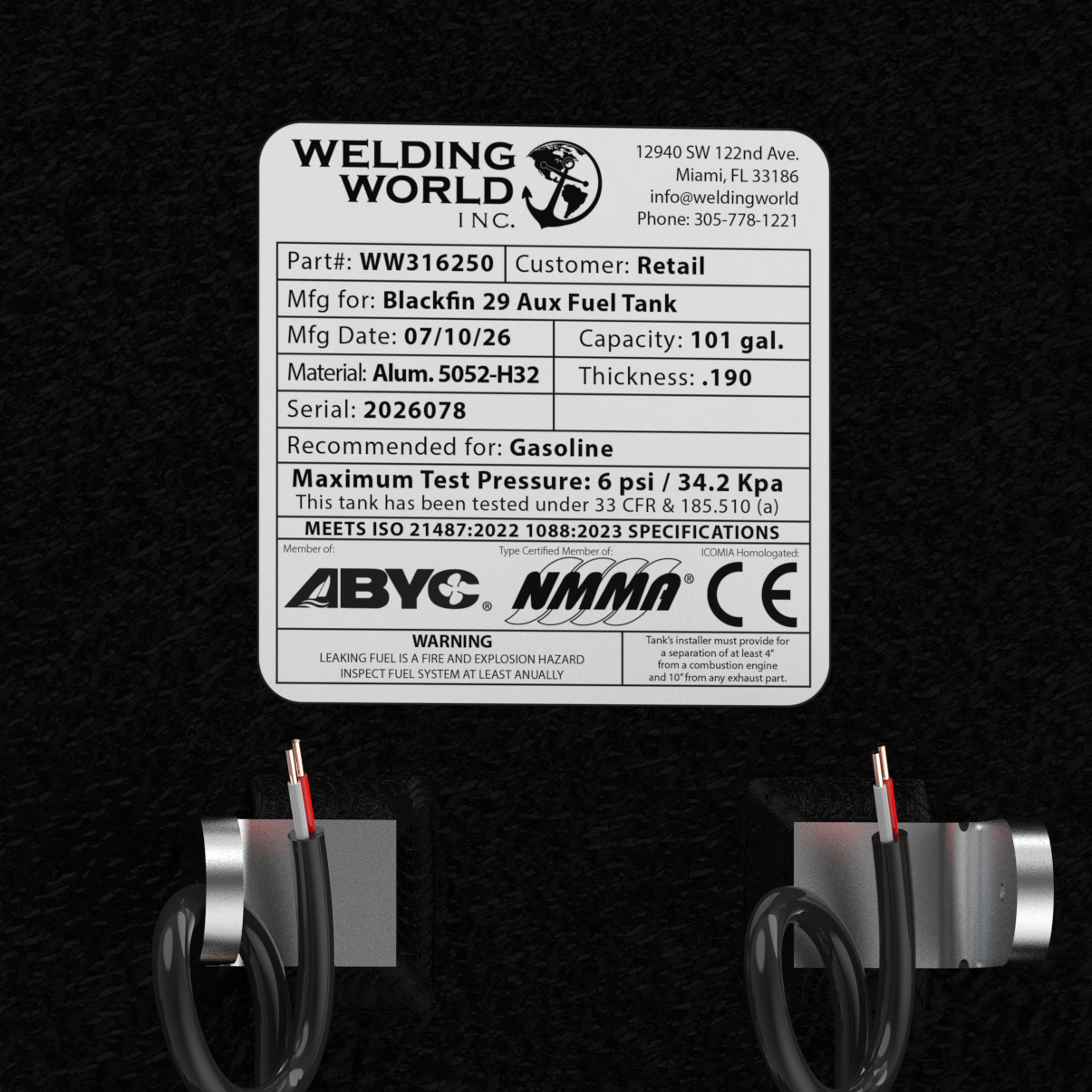

A close-up overhead rendering focusing on the official manufacturer specification placard, dual electronic fuel level sending units, and fuel pickup connections on a black Blackfin 29 Auxiliary OEM replacement marine fuel tank from file image_a869bb.jpg, isolated against a black background. The white weather-resistant data plate highlights precision engineering by Welding World Inc. in Miami, FL, explicitly listing Part Number WW316250, a 101-gallon capacity, heavy-gauge marine-grade 5052-H32 aluminum mater
A high-angle isometric perspective rendering of a pair of black Blackfin 29 OEM replacement marine fuel tanks from file image_a4e0b0.jpg, isolated against a black background. This dimensional overview showcases both the port and starboard configurations of the custom-engineered center belly tank system, meticulously modeled by Welding World to sit flush within the vessel's hull stringer grid. Precision-fabricated from heavy-gauge marine-grade 5052-H32 aluminum, the structural 162-gallon total capacity fluid
A high-angle isometric product graphic diagram of a raw aluminum Blackfin 29 FWD (Forward) OEM replacement marine fuel tank from file image_b2808a.jpg, isolated against a black background. Large white bold text overlays detail the exact physical dimensions, specifying a 101-gallon capacity, a length of 35 inches, a width of 31-1/2 inches, and a height of 23 inches. The CAD rendering highlights the specialized V-shaped bottom deadrise profile custom-engineered by Welding World to sit perfectly flush within t
A high-angle isometric product graphic diagram of a raw aluminum Blackfin 29 AFT (Aft) OEM replacement marine fuel tank from file image_b283b0.jpg, isolated against a black background. Large white bold text overlays detail the exact physical dimensions, specifying a 162-gallon capacity, a length of 48 inches, a width of 31-1/2 inches, and a height of 28 inches. The CAD rendering highlights the specialized stepped-deck geometry and V-shaped bottom deadrise profile custom-engineered by Welding World to sit pe
A close-up, cutaway technical rendering of the internal dual pickup assembly, dual sending units, and baffle system of a raw aluminum Blackfin 29 replacement marine fuel tank from file image_a704a0.jpg, isolated against a black background. This transparent cross-sectional view showcases the high-performance internal engineering designed by Welding World to eliminate fuel starvation, revealing dual rigid aluminum fuel pickup tubes extending from top-deck brass 90-degree elbows down to the deepest point of th
A close-up internal cutaway technical rendering of the dual fuel pickup assemblies, dual electronic sending units, and internal baffling inside a raw aluminum Blackfin 29 OEM replacement marine fuel tank from file image_a865ba.jpg, isolated against a black background. This detailed cross-sectional view showcases the high-performance engineering by Welding World to prevent fuel starvation under aggressive offshore conditions, revealing two rigid aluminum fuel pickup tubes running from top-deck brass 90-degre
Blackfin 29 Fuel Tank AFT (162 gal) FWD (101 gal) 2-tank combo | OEM Replacement
A low-angle side elevation rendering of a black Blackfin 29 OEM replacement marine fuel tank from file image_a6b2e6.jpg, isolated against a black background. This perspective showcases the stepped structural profile and specialized V-shaped bottom deadrise geometry, custom-engineered by Welding World to sit perfectly flush within the vessel's hull stringer grid. Precision-fabricated from heavy-gauge marine-grade 5052-H32 aluminum, the structural 162-gallon capacity fuel cell is fully encapsulated in an anti
Blackfin 29 Fuel Tank AFT (162 gal) FWD (101 gal) 2-tank combo | OEM Replacement
A low-angle perspective rendering of a black Blackfin 29 OEM replacement marine fuel tank from file image_a7051c.jpg, isolated against a black background. This dimensional view showcases the tank's shorter end-profile geometry and highlights its specialized V-shaped bottom deadrise profile, custom-engineered to sit flush within the vessel's hull stringer grid. Precision-fabricated from heavy-gauge marine-grade 5052-H32 aluminum, the structural 162-gallon capacity fuel cell is fully encapsulated in an anti-c
Blackfin 29 Fuel Tank AFT (162 gal) FWD (101 gal) 2-tank combo | OEM Replacement
A top-down bird's-eye perspective view of a pair of black Blackfin 29 OEM replacement marine fuel tanks from file image_a70577.jpg, isolated against a black background. This vertical overview clearly layouts the symmetrical top-deck layout for both the port and starboard configurations, showcasing the specialized plumbing hardware engineered by Welding World. Precision-fabricated from heavy-gauge marine-grade 5052-H32 aluminum, the structural 162-gallon capacity fuel cells are completely encapsulated in a t
Blackfin 29 Fuel Tank AFT (162 gal) FWD (101 gal) 2-tank combo | OEM Replacement
Blackfin 29 Fuel Tank AFT (162 gal) FWD (101 gal) 2-tank combo | OEM Replacement
A low-angle isometric perspective rendering of a pair of black Blackfin 29 OEM replacement marine fuel tanks from file image_a708fe.jpg, isolated against a black background. This dimensional front-end view showcases both the port and starboard configurations of the custom-engineered center belly tank system, highlighting their specialized V-shaped bottom profiles designed by Welding World to sit flush within the vessel's hull stringer grid. Precision-fabricated from heavy-gauge marine-grade 5052-H32 aluminu
Blackfin 29 Fuel Tank AFT (162 gal) FWD (101 gal) 2-tank combo | OEM Replacement
A low-angle side elevation rendering of a pair of black Blackfin 29 OEM replacement marine fuel tanks from file image_a70c02.png, isolated against a black background. This perspective showcases both the stepped structural tank and the standard straight profile of the custom-engineered center belly tank system, highlighting their specialized V-shaped bottom deadrise profiles designed by Welding World to sit flush within the vessel's central hull stringer grid. Precision-fabricated from heavy-gauge marine-gra
Blackfin 29 Fuel Tank AFT (162 gal) FWD (101 gal) 2-tank combo | OEM Replacement
Blackfin 29 Fuel Tank AFT (162 gal) FWD (101 gal) 2-tank combo | OEM Replacement
Blackfin 29 Fuel Tank AFT (162 gal) FWD (101 gal) 2-tank combo | OEM Replacement
A close-up overhead rendering focusing on the official manufacturer specification placard, dual fuel level sending units, and fuel pickups on a black Blackfin 29 OEM replacement marine fuel tank from file image_a86902.jpg, isolated against a black background. The white weather-resistant data plate highlights precision engineering by Welding World Inc. in Miami, FL, explicitly listing Part Number WW316250, a 162-gallon capacity, heavy-gauge marine-grade 5052-H32 aluminum material construction with a 0.190-in
Blackfin 29 Fuel Tank AFT (162 gal) FWD (101 gal) 2-tank combo | OEM Replacement
A close-up overhead rendering focusing on the official manufacturer specification placard, dual electronic fuel level sending units, and fuel pickup connections on a black Blackfin 29 Auxiliary OEM replacement marine fuel tank from file image_a869bb.jpg, isolated against a black background. The white weather-resistant data plate highlights precision engineering by Welding World Inc. in Miami, FL, explicitly listing Part Number WW316250, a 101-gallon capacity, heavy-gauge marine-grade 5052-H32 aluminum mater

Blackfin 29 Fuel Tank AFT (162 gal) FWD (101 gal) 2-tank combo | OEM Replacement

$ 4,792.00
/
  • Local pickup available
  • Over-sized & over-weight item.
  • Only Ships LTL Freight.
  • Call us Mon.-Fri. 9:00 a.m. to 4:00 p.m. if in any doubt.

Restore your vessel’s fuel system infrastructure with commercial-grade Blackfin 29 OEM replacement marine fuel tanks, engineered specifically to eliminate the vulnerabilities of aging, corroded factory cells. This complete heavy-duty system includes both the 162-gallon Aft belly tank and the 101-gallon Forward auxiliary tank, precision-fabricated by Welding World from extra-thick .190-gauge marine-grade 5052-H32 aluminum to vastly outperform standard factory specifications. Every tank features specialized V-bottom deadrise geometries tailored to your hull's precise stringer grid, internal slosh-control baffling to preserve stability in aggressive offshore conditions, and a thick, anti-corrosive TarGard epoxy coating to safeguard against saltwater pitting. Built in full compliance with ABYC, NMMA, and USCG standards, these tanks are delivered pressure-tested and complete with pre-installed mechanical plumbing layout components—including high-flow brass dual pickups and electronic sending units—ensuring a guaranteed 100% drop-in fit right out of the crate.



  • Guaranteed to Fit Your Blackfin
    Every tank is engineered using OEM drawings and/or reverse-engineered from an original unit to ensure a precise, 100% guaranteed fit.



  • Fully Certified Manufacturing
    Our tanks are built by an NMMA-type certified manufacturer and produced in accordance with all ABYC standards.



  • USCG Compliant & Pressure Tested
    Each tank meets all USCG requirements and is individually pressure-tested in house. All federal regulations are followed throughout our manufacturing process to ensure maximum safety and reliability.



  • .190-Thickness 5052 H32 Aluminum Construction
    Built from premium marine-grade 5052 H32 aluminum at .190 thickness for exceptional strength and long-term durability.



  • Complete, Ready-to-Install System
    Each tank comes fully equipped with all required components, including the sender, fittings, and hardware.



  • Precision Hand-Welded Construction
    Every tank is hand-crafted using GTAW (TIG) welding, exceeding ASME and AWS D3.7:2004 standards for marine aluminum fabrication.



  • Sherwin-Williams® TarGard® Epoxy Coating
    Finished with Sherwin-Williams® TarGard® Epoxy to provide added protection against corrosion and harsh marine environments, extending the overall life of the tank.



  • KUS® (formerly WEMA USA®) Reed-Switch Fuel Level Sender
    Features a high-quality KUS® reed-switch sender with an NBR float, providing accurate and reliable fuel-level measurement.



Buy with confidence. Shortly after your payment clears you'll be sent via e-mail a complete set of detailed drawings for you to check all dimensions and fittings positions. If there's any difference from your old tank we can make any reasonable modifications to accommodate your needs. Fabrication of your new tank won't start until you send us your specs confirmation.



IMPORTANT NOTE: The base price is for local pickup in our SW Miami Shop. Check options above for crating and shipping to the contiguous 48 States. All tanks are made to order and the fabrication lead time is 1-2 work weeks. The finished tank pickup window is also 1-2 work weeks, so make sure you will be able to take delivery of your finished tank within that timeframe.



NOTE: Check your tank dimensions thoroughly! Once a tank is manufactured and/or shipped we can't be responsible for mismatches and refunds or returns won't be accepted. All sales are final!



Shipping: Only freight to the 48 contiguous states. Contact us for extra-cost shipping options for HI and AK. Orders for international shipping from US-based carriers are welcome but contact us first to coordinate details.



Return Policy: No refunds are accepted, as all of our products are made to order. Our policy is strictly limited to the repair or replacement of qualifying defective or damaged goods. Please note that shipping costs are non-refundable.



Fabrication lead time (before shipping): 1-2 work weeks.

Due to this item's size and weight we can only ship it in an economical way via Less Than Truckload (LTL) consolidated land shipping, and only to the contiguous 48 States.

For shipping inquiries to AK, HI, PR, US-VI, and international shipping, please contact us first at sales@weldingworldinc.com.

All of the destinations above we can only serve as a Free Carrier (or FCA) modality, that requires the customer to contract and pay for their carrier service of choice. We can still ship the item, but only to a warehouse/receiving office within the 48-contiguous States.

In plain terms what this means is that if you want to ship your product to any non-contiguous US territory or internationally, you, the customer, has to provide us with the warehouse address of the carrier that serves your locality with an address within the contiguous 48-US States, as we do not ship overseas on our own.
